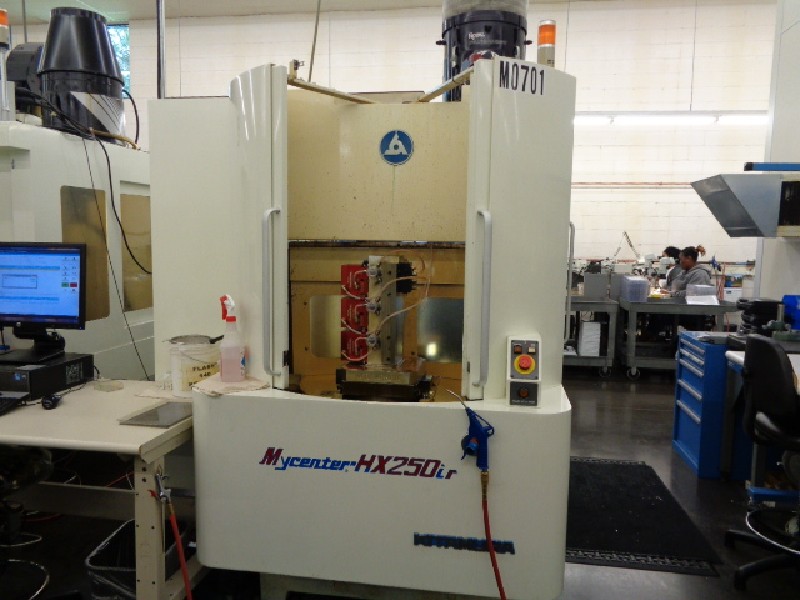

Kitamura Mycenter HX250if CNC Horizontal Machining Center
Kitamura HX250if
Age: 2006
Stock Number: 1204
Catalog Specifications
Click to view larger photo
Specification
Description
Pallet Size (2)
10" X 10"
X Axis
12"
Y Axis
12"
Z Axis
13"
Main Motor
15 HP
Spindle Speed
15,000 RPM
Spindle Taper
BT30
Tools

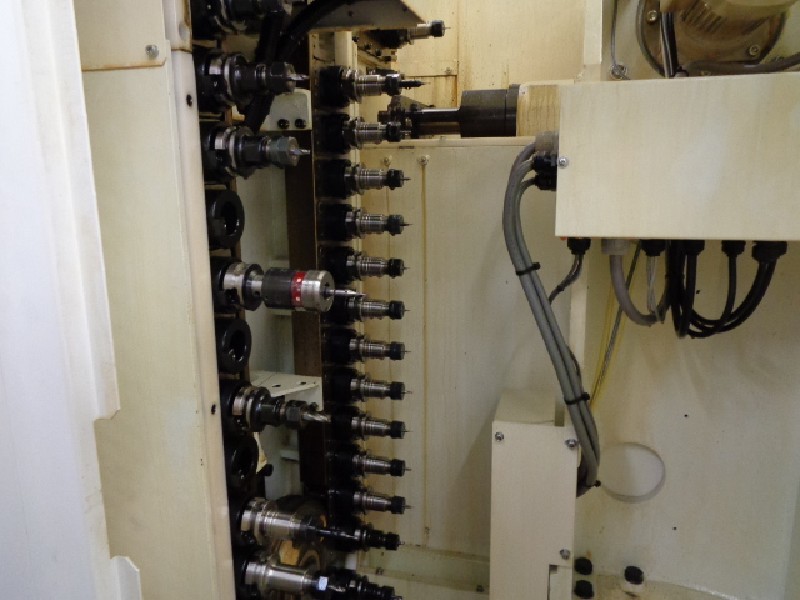

40 ATC
Dimensions
108" X 80" X 84"
Weight
9,300 lbs.
Equipped With:

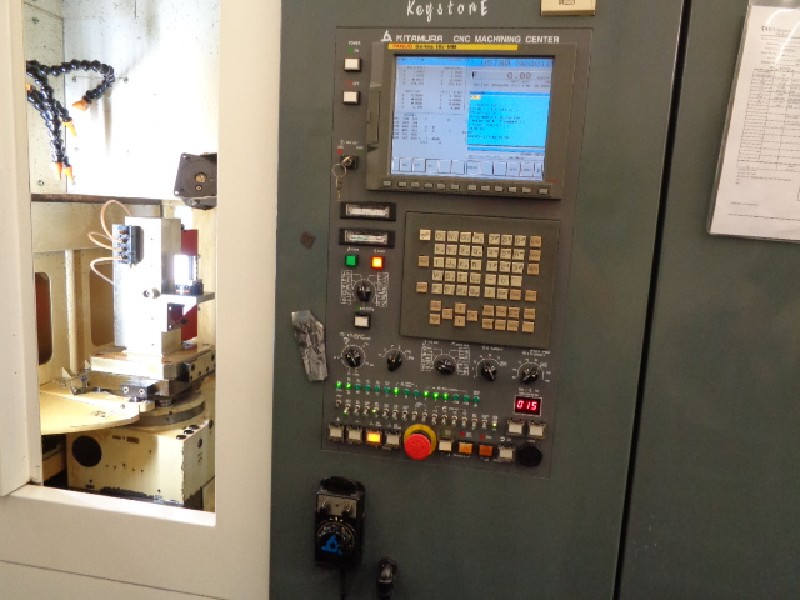

Fanuc 18i-MB CNC Control
Full 4th Axis
Probe System
Chip Conveyor
Coolant Thru Spindle
Royal Air Filtration
Broken Tool Detector

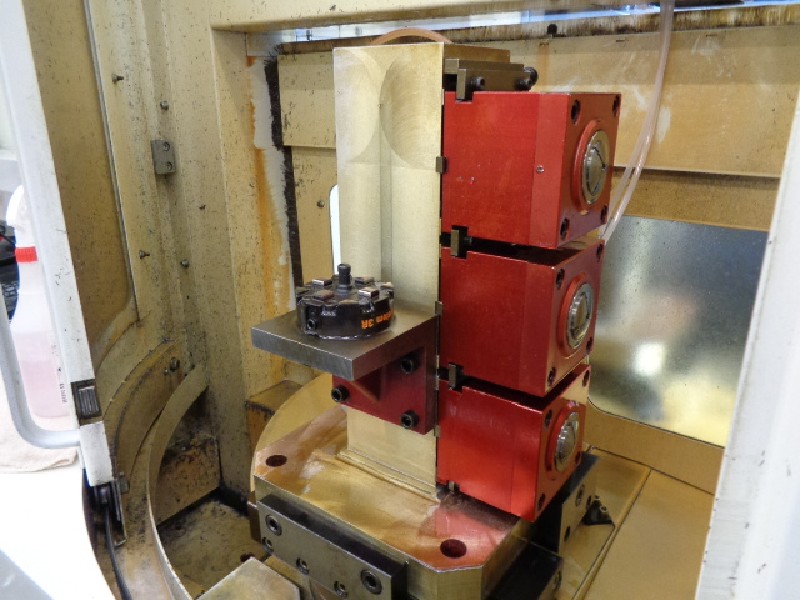

Tombstones
System 3R Quick Change
Air Collet System
Spindle Chiller
All Available Manuals and Tooling
