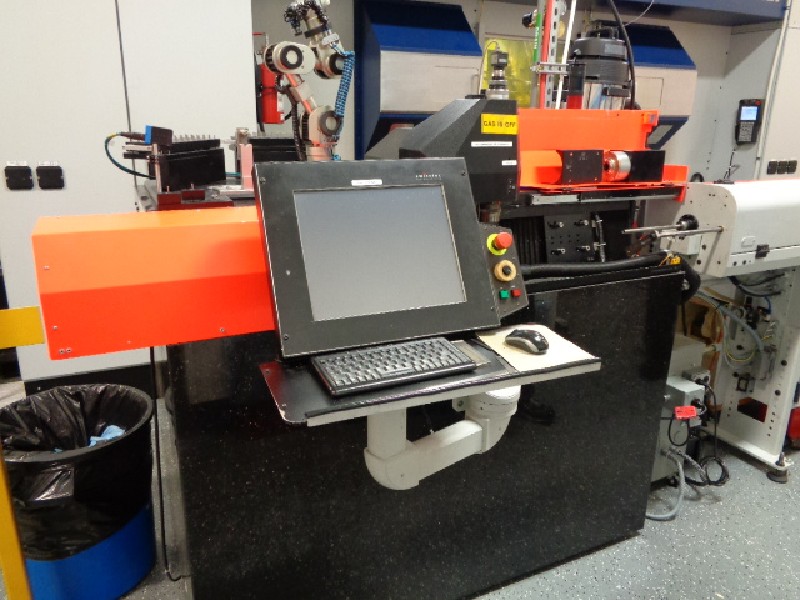

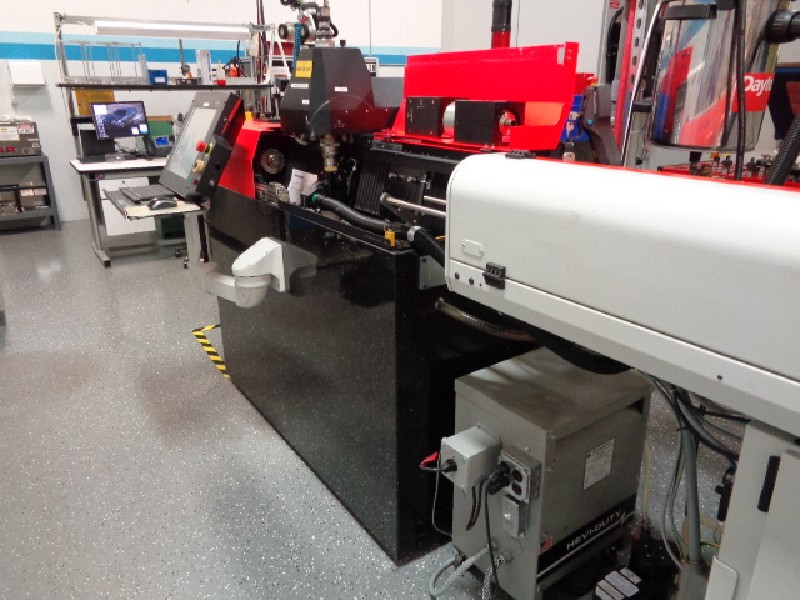

SwissTec MFT 6 Axis CNC Laser Cutting Welding System

Swiss Tec MFT

Age: 2010

Stock Number: 1169

Manufactures Specifications: New price over $900K Forward Spindle Needs to be repaired.

Click to view larger photo

Specification	Description
Overall Capabilities:
Part Length (Maximum)	20" (508mm)
Mandrel Diameter (Maximum)	21mm (0.8268")
Tube Outer Diameter (Standard Parts)	4mm - 6.5mm
- with Additional Channels & Bar Pushers	2mm to 8mm
Tube Wall Thickness: SS (304, 316, 303, 17-4, 17-7)	0.030" Maximum
Tube Wall Thickness Nitinol (possibly thicker)	0.10" Maximum
Laser Cutting, Vertical Cuts Only	Perpendicular to Tube Axis
Laser Cutting, Horizontal V-Axis Limits (Centerline)	2.7mm Max (.1063")
Laser Welding: Directed towards Pickoff Collet	Angled 45° Welds Only
Basic Machine:
6 Axes	X, A, U, B, W & V
Main & Pickoff Collet	Schaublin type F25
Custom Pneumatic Clamp	Up to Ø1/2" Maximum Tube
Custom Pneumatic Crimper	Limited Power
Laser Welder:
Laser Type (Air Cooled, Diode Pumped)	Ytterbium Fiber
Wavelength	1070 nm
Power	0 - 100 Watts
Pulse Frequency	Continuous thru 100 kHz
Pulse Length	0 - 1,000ms
Weld Gas	Argon
Orientation (Angular Welds)	45° from Tube Axis
Positioning Precision	±0.01mm (±0.0004")
Laser Cutter:
Laser Type (Air Cooled, Diode Pumped)	Ytterbium Fiber
Wavelength	1070 nm
Power	0 - 100 Watts
Pulse Frequency	Continuous thru 100 kHz
Pulse Length	0 - 1,000ms
Beam Expander	1x to 2.8x
Cutting Gas	Oxygen
Orientation	Vertical Only
Positioning Precision	±0.01mm (±0.0004")
Tube Feeder:
Tube Length	1 to 3.7 meters (39.37" to 145
Robot:	6 Axes of Rotation
Gripper	Usable on Larger Rigid Parts
Camera	Vision Sensor

Equipped With:

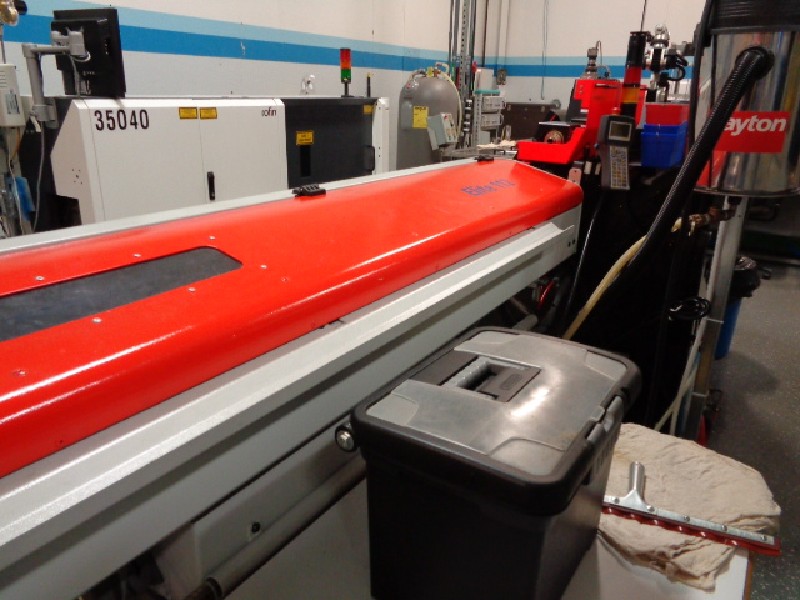

Iemca Elite 112 Bar Feed
Neuronic Robot
(2) Spindles for Multiple Operations

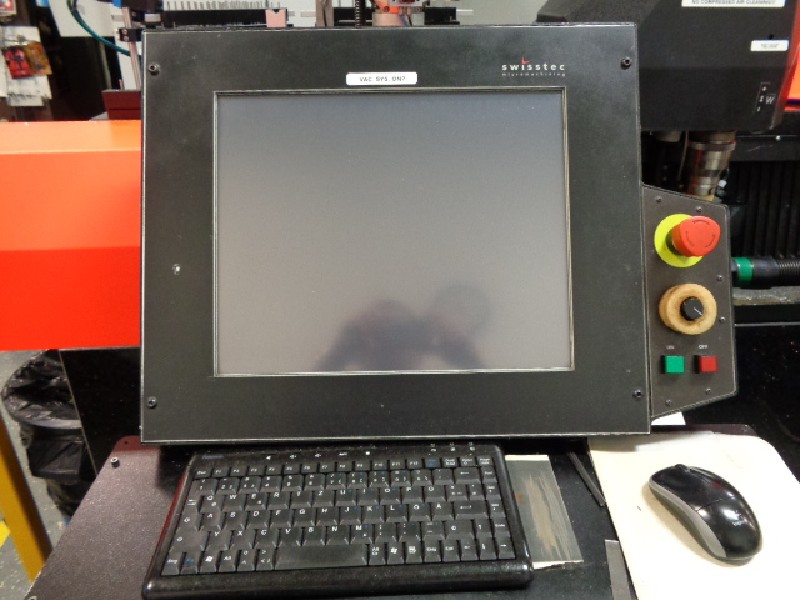

Swiss Tec CNC Control
Granite Enclosure
All Available Manuals and Tooling

***Additional Machine Information***
Tube Outer Diameter:
* (1mm to 2mm tube will cause material handling & tube feeder problems)
* (8mm to 9.91mm tube will require more extensive retooling of bar feeder)
* (9.91mm to 12.7mm will require major rebuild of tube feeder)
Tube Wall Thickness:
*(cutting off of center requires varying depth cuts deeper than wall thickness) No data for aluminum, titanium & magnesium are fire hazards.
Machine Info:
*6 axes
-Pickoff-Mandrel Collet Axial & Rotary (X & A)
-Main-Tube Collet Axial & Rotary (U & B)
-Laser Vertical & Horizontal (W & V)
Tuber Feeder:
*Smaller Tube Diameter
0.0394" (1mm) to 0.0787" (2mm) very difficult material to handle
0.0787" (2mm) to 0.1575" (4mm) with smaller channels & bar pusher
*Standard Tube Diameter
0.1575" (4mm) to 0.2559" (6.5mm) with standard 9mm channels & 8mm pusher
*Larger Tube Diameter
0.2559" (6.5mm) to 0.3150" (8mm) with larger channels & bar pusher
0.315" (8mm) to 0.390" (9.91mm) need larger channels, pusher & telescopic tube
0.390" (9.91mm) to 0.500" (12.7mm) would need major rebuild
*DI water thru tube capability has been enabled.
*Air thru tube capability has been enabled.
