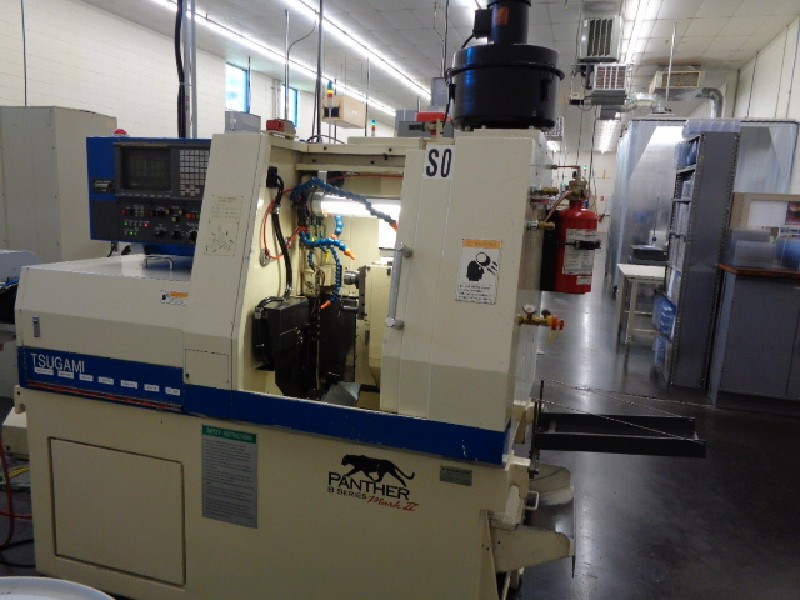

Tsugami BS18-B CNC Swiss Turning Center

Tsugami BS18-B CNC Swiss Turning Center

Tsugami BS18 B

Age: 1998

Stock Number: 1154

Catalog Specifications Controlled Axes (5): X1, Z1, A, X2, Z2


Click to view larger photo

SpecificationDescription
Bar Capacity18 mm
Max Machining Length (80mm: Rotary guide bushing)210 mm
Max Main Spindle Drilling DiameterØ7
Max Main Spindle Tapping DiameterM6 X 1
Max Back Spindle Barstock DiameterØ18
Max Back Spindle Drilling DiameterØ6
Max Back Spindle Tapping DiameterM5 x 8
Max Cross Drilling DiameterØ6
Max Cross Tapping Diameter (OP.)M5 X 0.8
Spindle Speeds (Main)200 - 10,000 RPM
Spindle Speeds (Sub)200 - 8,000 RPM
Tool Storage Capacity16
Tool Size12mm x 12mm x 85mm
Machine Dimensions73" x 45.3" x 67"
Weight4,850 Lbs.

Equipped With:
Fanuc LE1 Control

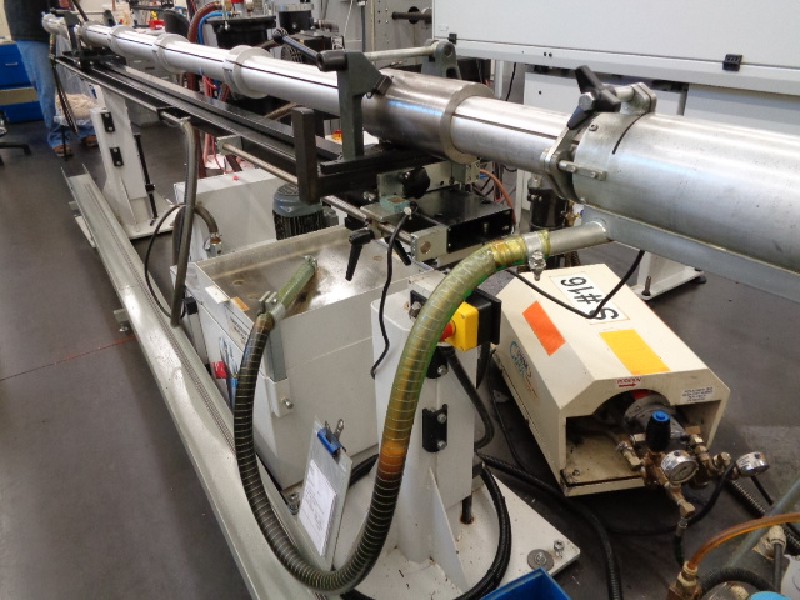

LNS Super Hydrobar Barfeed
Coolant System
Fire Suppression System
Royal Filter Mist System

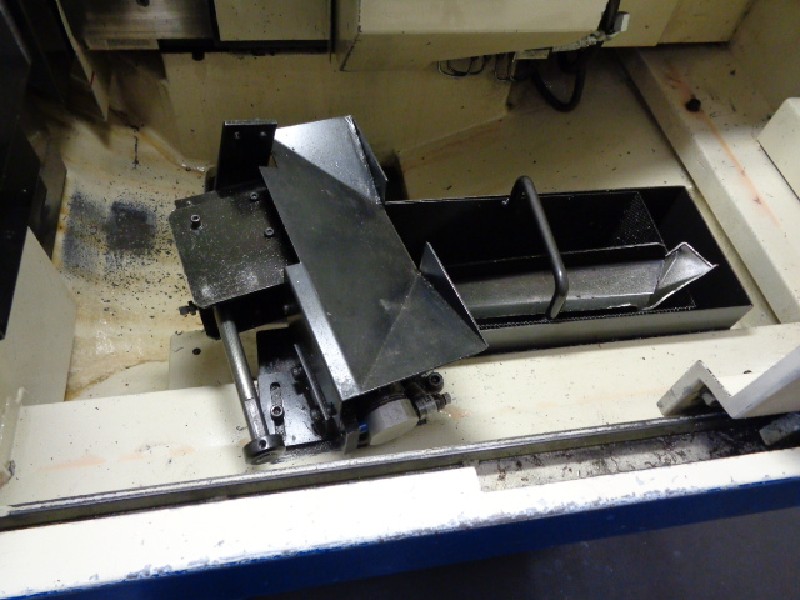

Parts Catcher
RS232
All Available Manuals and Tooling
