Citizen M20 CNC Swiss Turning Center

Citizen M20 CNC Swiss Turning Center

Citizen M 20

Age: 1995

Stock Number: 1168

Catalog Specifications Controlled Axes (7): X1, X2, Z1, Z2, Z3, A2, Y1


Click to view larger photo

SpecificationDescription
Bar Capacity20mm (0.787")
Max Machining Length320mm (12.6')
Max Back Spindle Chucking Diameter20mm
Max Back Spindle Work Length125mm (4.92")
Max Back Spindle Drilling/Threading8mm (0.315")
Spindle Speeds (Main)200 - 8,100 RPM
Spindle Speeds (Sub)150 - 7,200 RPM
Rotary Tool Speed (Main Slide)250 - 5,000 RPM
Main Slide Tool Size13mm x 13mm x 150mm

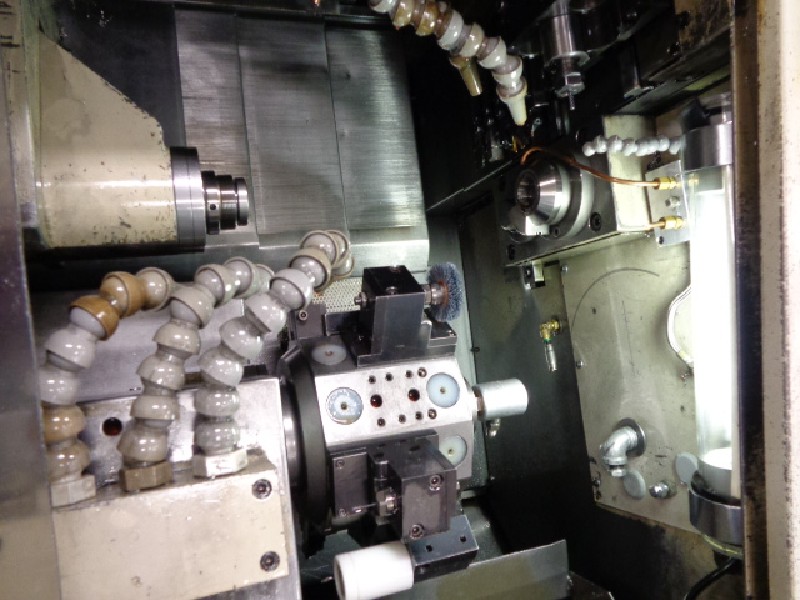

Turret Capacity10 (Live)
Turret Live Tool Speed320 - 6,300 RPM
Turning Tools Size5 Static
Turret Tool Size10mm x 10mm x 60mm
Machine Dimensions93" x 43" x 63"
Weight3,660 Lbs.

Equipped With:
Citizen M Series Control (Mitsubishi)
C-Axis on Main Spindle
15 Degree Index on Sub-Spindle
3 Live Tools on Main Slide

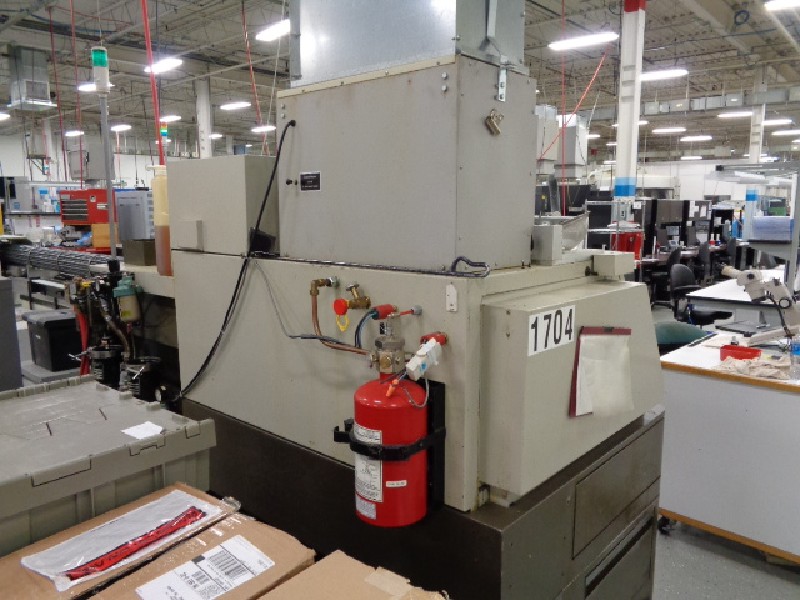

Fire Suppression System
Mist Buster
Coolant System
Synchronous Rotary Guide Bushing

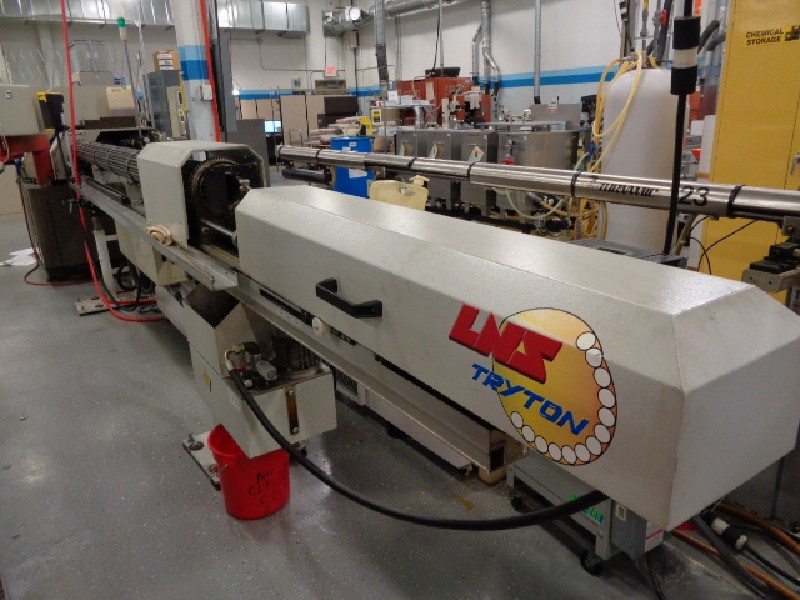

LNS Tryton Bar Feed (14/8mm Combo Barrel)
(3) Live & (3) Static Tool Holders
RS232
All Available Manuals
