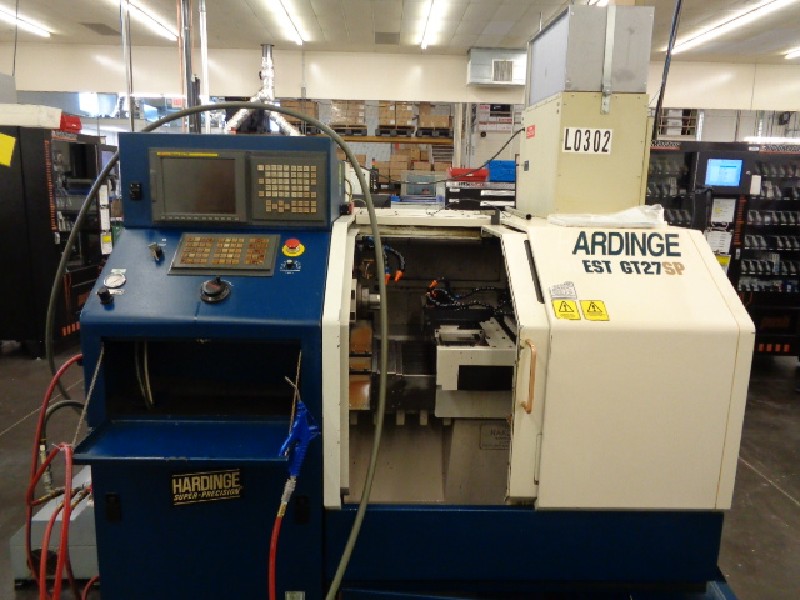

Hardinge Quest GT27 SP CNC Gang Tool Turning Center

Hardinge Quest GT27 SP CNC Gang Tool Turning Center

Hardinge Quest GT27SP

Age: 2004

Stock Number: 1181

Catalog Specifications


Click to view larger photo

SpecificationDescription
Max Work Piece Diameter1.062"
Swing Diameter11.760"
(X) Axis Travels11.968" (304mm)
(Z) Axis Travels11.062" (281 mm)
Spindle Bore27 mm
Spindle Speeds80 - 8,000 RPM
(X) Axis Rapid Traverse708 IPM
(Z) Axis Rapid Traverse945 IPM
Spindle Motor5 HP
Weight5,700 Lbs.
Floor Space70" LR X 58.7" FB X 62" H
Wired230v / 3Ph /60Hz

Equipped With:

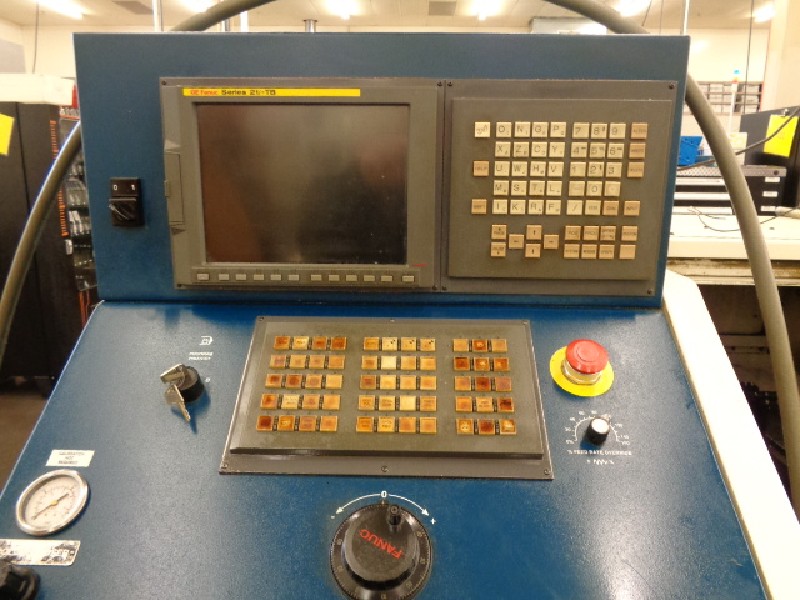

Fanuc 21i-TB CNC Control
Expanded Memory
Parts Catcher

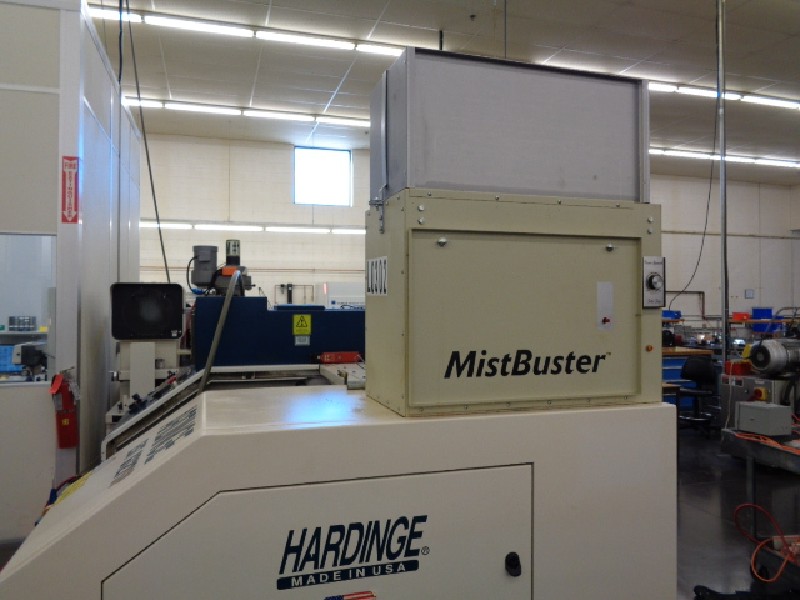

Mist Collector

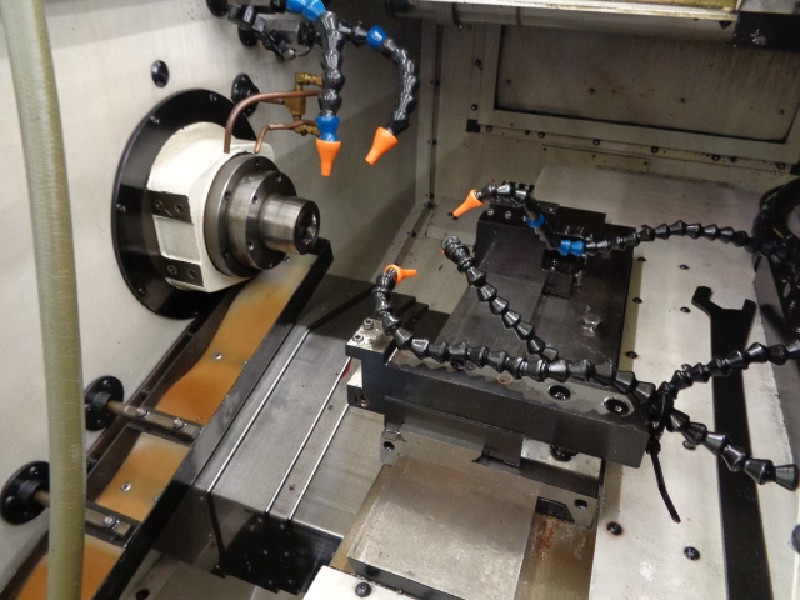

5C Collet Chuck

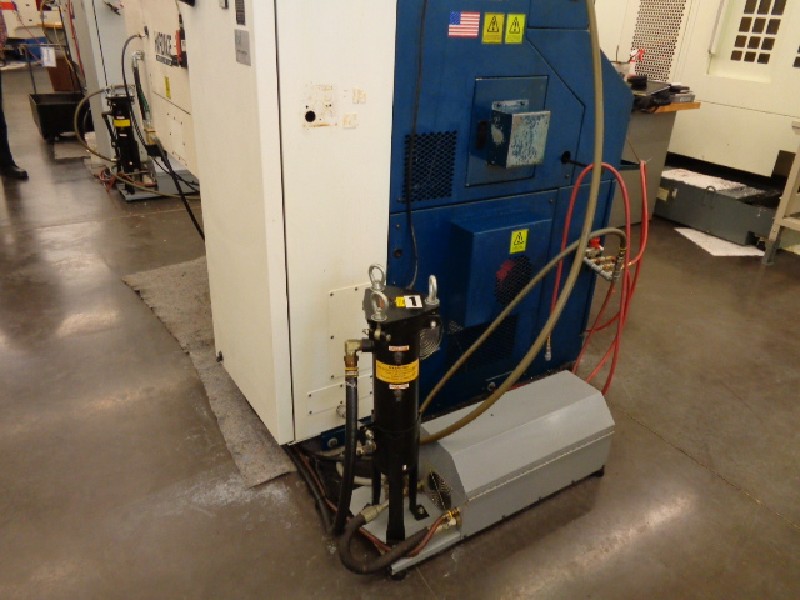

High Pressure Coolant System
Misc. Tool Holders
All Available Manuals
