6 Ft X 60 Ton Accurpress Hydraulic Press Brake Model 7606
Accurpress 7606
Age: 1998
Stock Number: 1176
Catalog Specifications

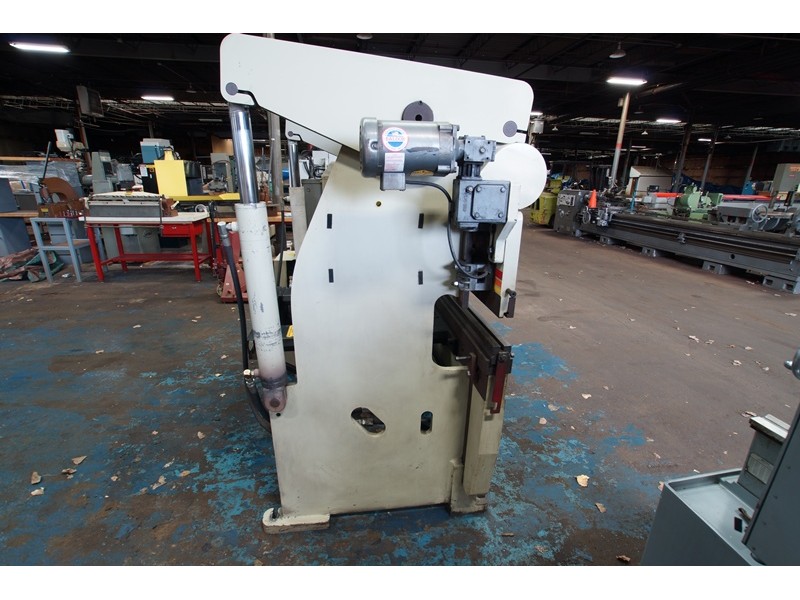

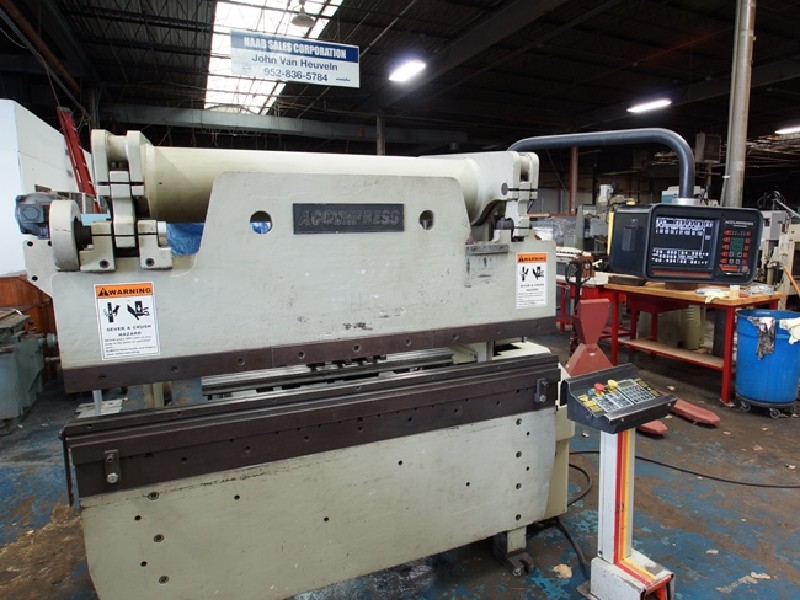

Click to view larger photo
| Specification | Description |
|---|
| Bed and Ram Length | 72" |
| Bed Width | 3" |
| Bed Height | 34" |
| Rated Capacity | 10 ga. (A36 steel pl. x 6 ft.) |
| Die Opening at Mid Stroke | 10" |
| Fast Approach | 125 ipm |
| Slow Bend | 18 ipm |
| Fast Return | 205 ipm |
| Stroke Length | 8" |
| Backgauge Travel | 24" |
| Dimensions | L 94" x W 50" x H 77" |
| Weight (approx.) | 6,000 Lbs. |
Equipped With:

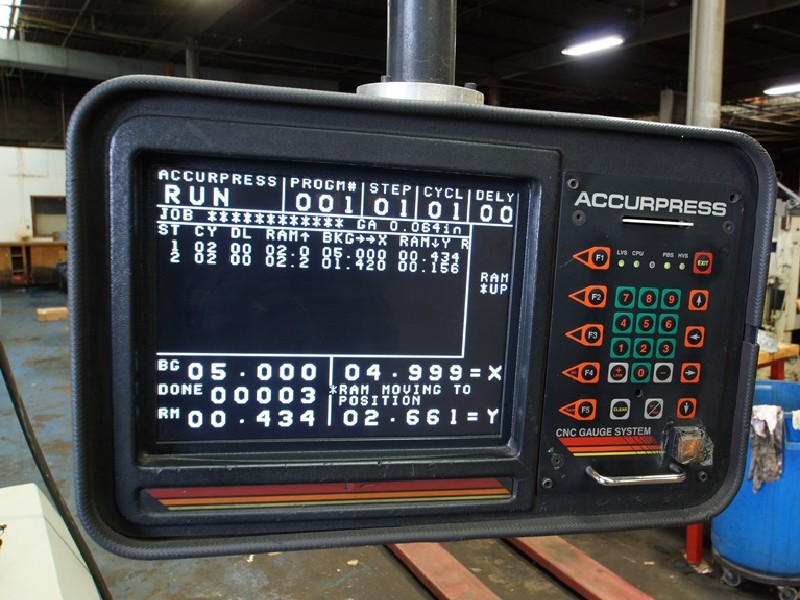

ETS2000 CNC Control w/ Foot Pedal

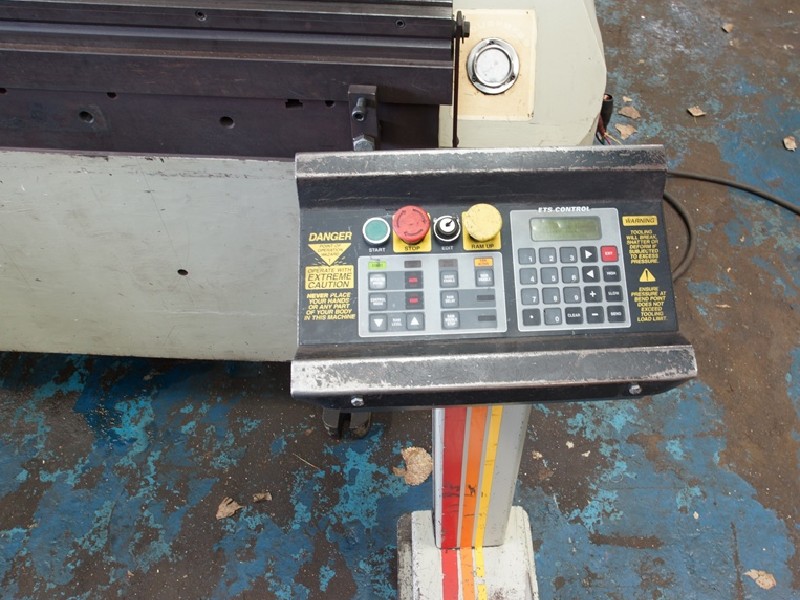

ETS2000 Pedestal Control
2 Axis Backgauge
Baldor Motor:10 HP 230 V 3 Phase
Hydraulic Fluid Capacity: 36 gal.
Pump Flow: 21 gpm @ 1725 rpm
System Pressure: 3500 psi

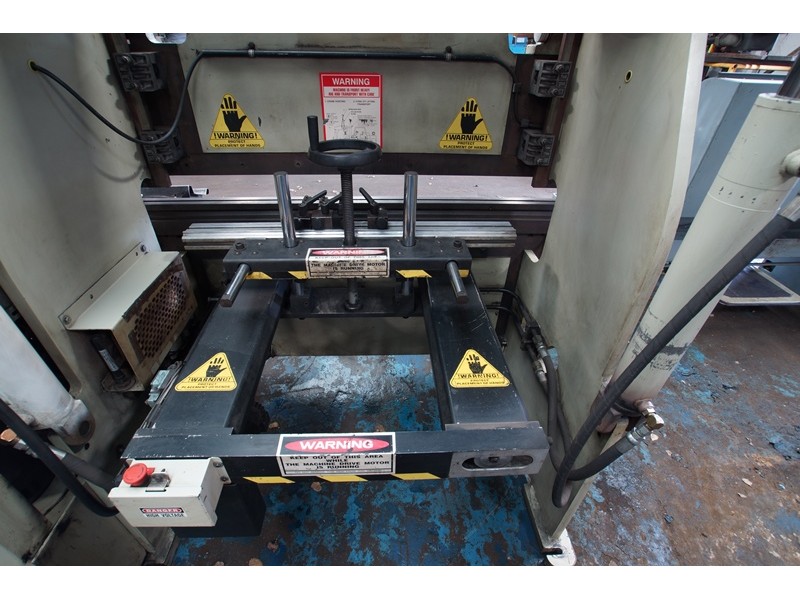

Upper & lower die holders (installed, as shown)
