| Specification | Description |
|---|---|
| Bed and Ram Length | 72" |
| Distance Between Housings | 62" |
| Throat | 6" |
| Tonnage Top of Stroke | 30 Ton |
| Tonnage Botton of Stroke | 45 Ton |

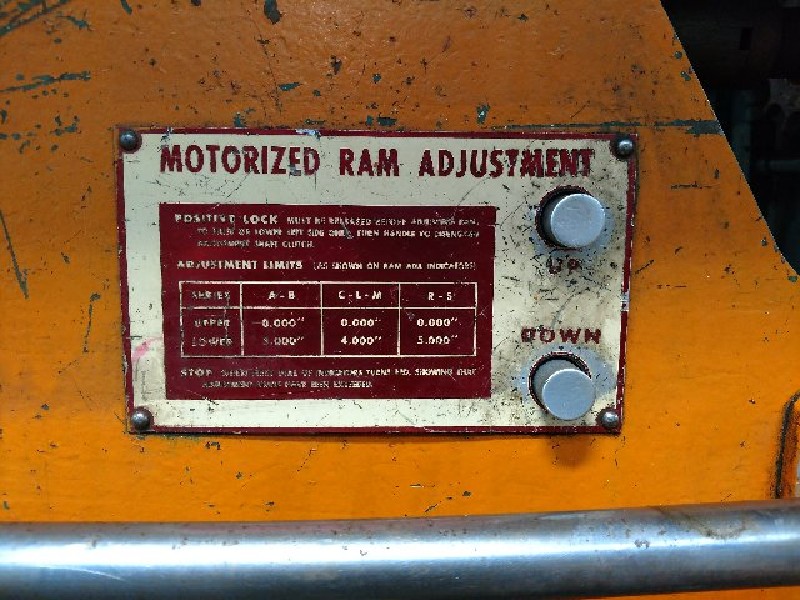

| Ram Adjustment | 3" |
| Stroke Length | 2" |
| Die Space | 9" |
| Front Operated Manual Backgauge | 18" |
| Max Sheet Thickness | 12 Gauge at 48" |
| Max Sheet Thickness | 14 Gauge at 66" |
| Approximate Machine Dimensions | 72"L x 36"D x 92"H |
| Approximate Weight | 4,500 lbs. |
