| Specification | Description |
|---|---|

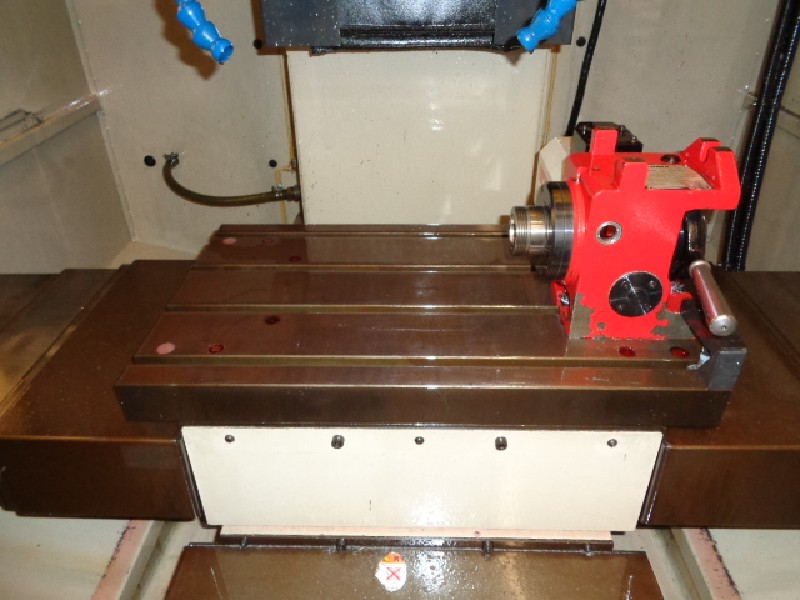

| Table Size | 24" x 15" |
| X Travel | 19.69" |
| Y Travel | 14.96" |
| Z Travel | 9.84" |
| Spindle Speeds | 8,000 RPM |
| Spindle Taper | BT 30 |
| Tool Capacity | 12 ATC |
| Spindle Motor | 5 / 7.5 HP |
| Rapid Traverse (X,Y) | 1181 IPM |
| Rapid Traverse (Z) | 945 IPM |
| Chip to Chip | 2.5 Sec |
| Machine Dimensions | 59" LR x 74" FB x 107" H |
| Machine Weight | 5,300 Lbs. |
