| Specification | Description |
|---|---|

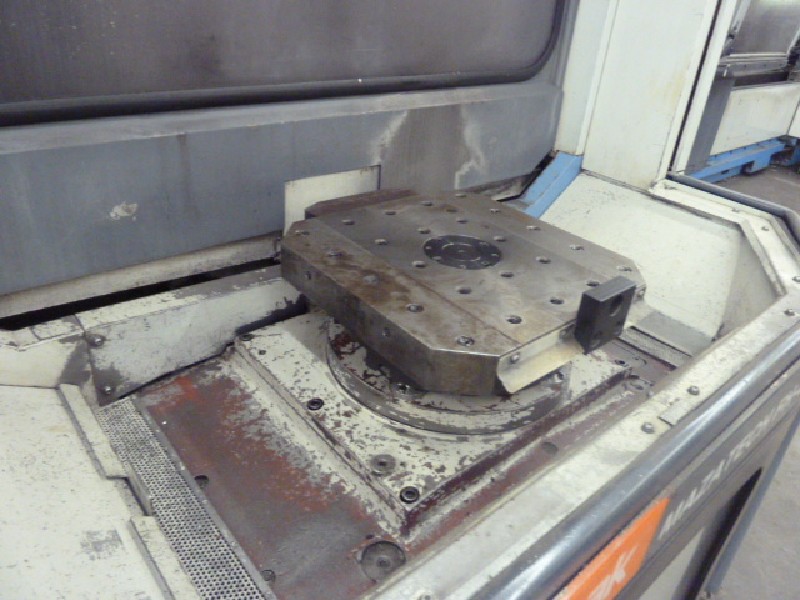

| Pallet Size (2) | 15.75" X 15.75" |
| X Travel | 22" |
| Y Travel | 22" |
| Z Travel | 20" |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT #40 |
| Spindle Motor | 30 HP |
| Max. Load on Table | 880 lb. |
| Max. Tool Diameter | 5.9" |
| Max. Tool Length | 12.59" |
| Tool Capacity | 30 ATC |
