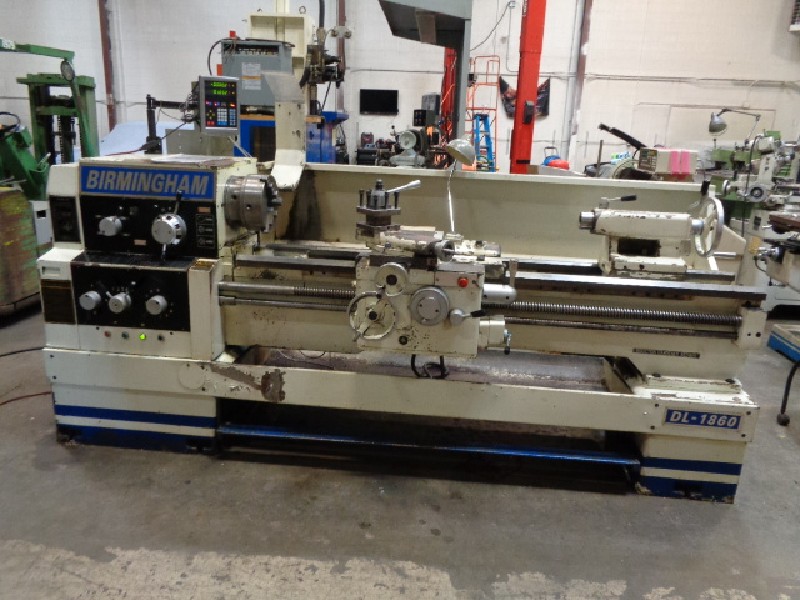

Birmingham DL-1860 Engine Lathe

Birmingham DL-1860 Engine Lathe

Birmingham DL1860

Age: 2007

Stock Number: 1319

Catalog Specifications Scale on Flange and Chuck for multi-start thread cut.


Click to view larger photo

SpecificationDescription
Swing Over Bed18"
Swing Over Carriage8.625"
Swing Over Gap27.5"
Distance Between Centers60"
Spindle Speeds (14)16 - 1,600 RPM
Diameter of Spindle Hole3.1875"
Spindle TaperD1-8
Main Motor10 HP
Foot Print105" (LR) x 47.5 (FB) x 53.75
Wired220v or 440v / 3 Ph

Equipped With:
(2) Axis DRO

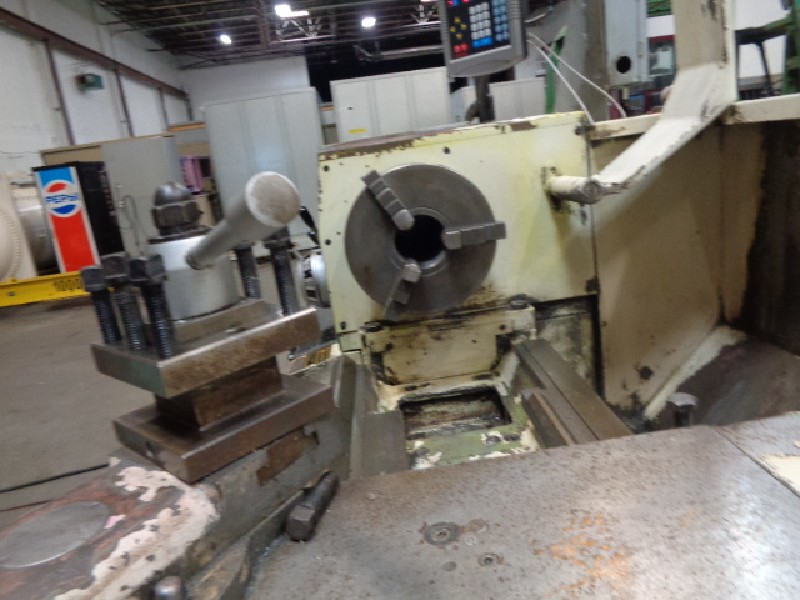

(3) Jaw Chuck
Inch & Metric Threading
(4) way Tool Post
Tailstock
Travel Dial
Coolant
All Available Manuals
