Catalog Specifications
Main Turret:
Number of Axis Controlled: 2
Tooling Stations: 8 (Every other station live)
Sub Turret:
Number of Axis Controlled: B Axis 1
Tooling Stations: 6

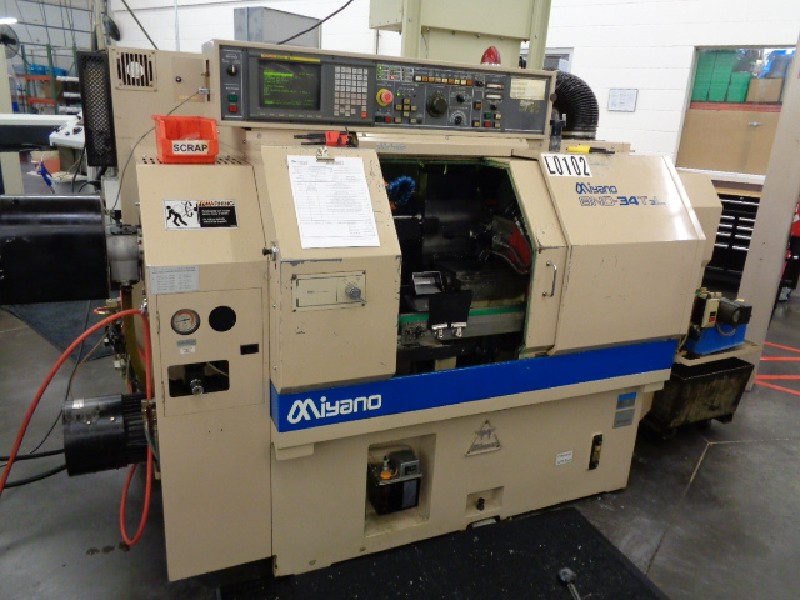

Click to view larger photo
Specification
Description
Max Turning Diameter
4.75"
Max Work Piece Diameter
1.312" (Bar)
Min Work Piece Diameter
0.5"
Max Turning Length
7"
X Axis Travel
4"
Z Axis Travel
11.05"
Spindle Bore (ID Draw Tube)
1.417"
Spindle Speeds
170 - 5,000 RPM
Spindle Motor
7.5 HP
Rapid Traverse (X & Z)
472 IPM
(2) Turret Capacity
8 & 6 Positions Each
Live Tool Spindle Speeds
133 - 4,000 RPM
Approx. Weight
8,000 lbs.
Approx. Floor Space (+ Bar Feed)
59" X 100" X 67"
Equipped With:

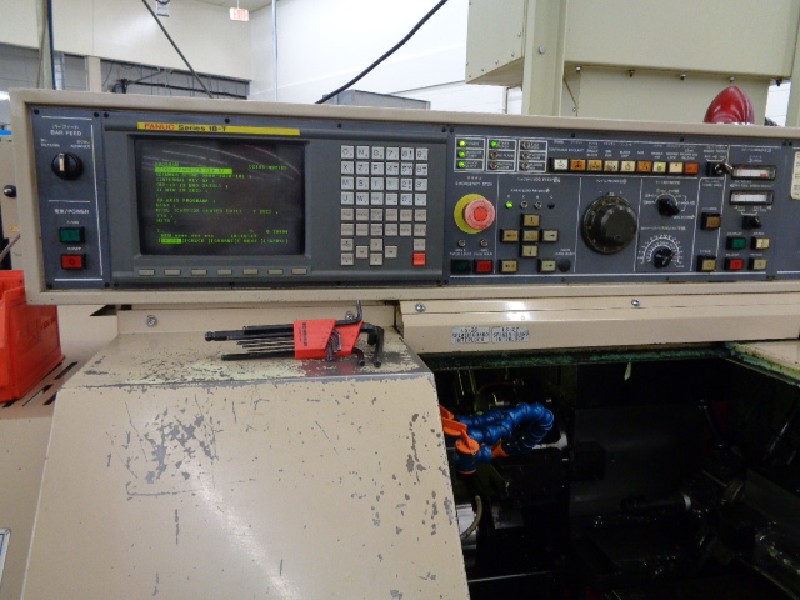

Fanuc 18-T CNC Control
16C Collet Chuck
Misc. Live Tool Holders
LNS Hydrobar Barfeed
15 Degree C Axis on Spindle
High Pressure Coolant System
Mist Buster Filtration System
Parts Conveyor
RS232
All Available Manuals
