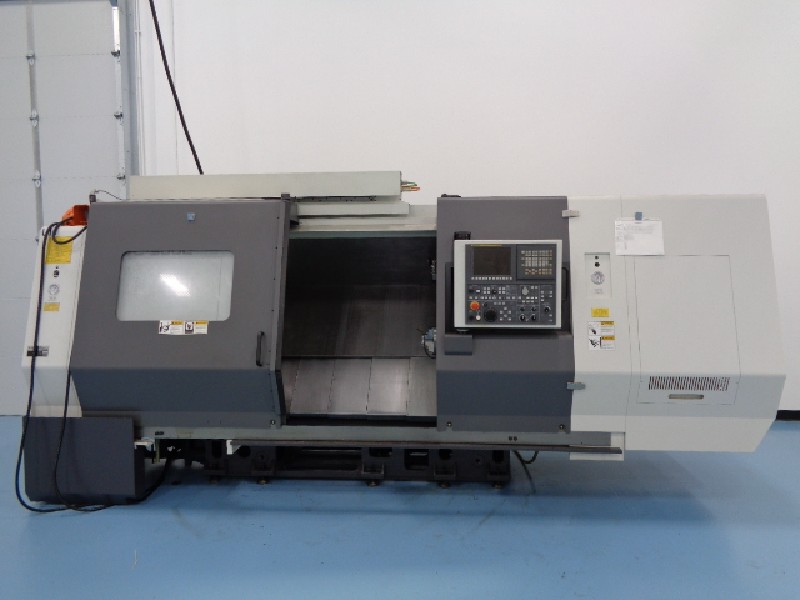

Nakamura SC-300L CNC Turning Center

Nakamura SC-300L CNC Turning Center

Nakamura SC 300L

Age: 2015

Stock Number: 1242

Catalog Specifications Machine was purchased for a specific application in which the tooling could not hold a finish in an automated setting. Very Low Hours!!!


Click to view larger photo

SpecificationDescription
Max Turning Diameter13.8"
Distance Between Spindles31.8"
Max Turning Length23.7"
Bar Capacity3.2"
X Axis Travel8.8"
Z Axis Travel25"
Rapid Feed788 (X) / 1181 (Z) IPM
Spindle Nose (Main)A2-8
Spindle Bore (Main)3.3"
Spindle Speed (Main)3,500 RPM
Spindle Nose (Sub)A2-5
Spindle Bore (Sub)2"
Spindle Speed (Sub)3,500 RPM

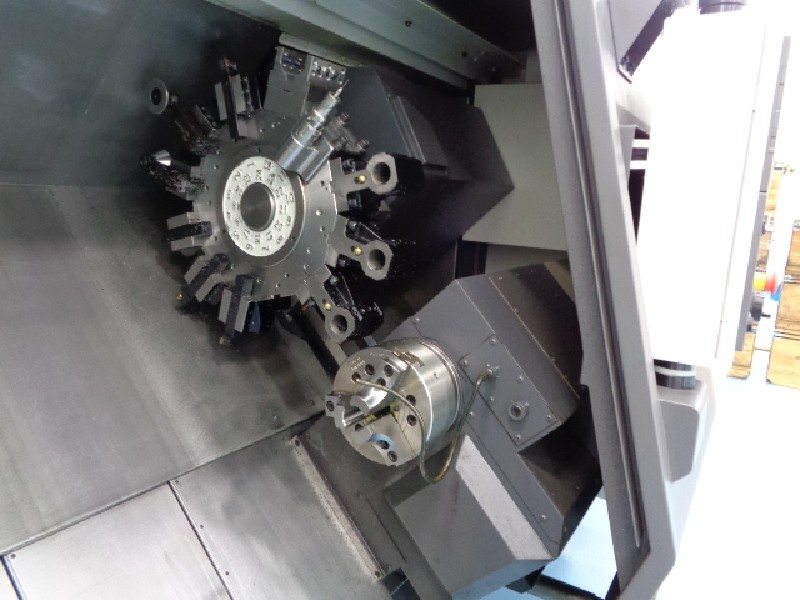

Turret Tool Stations12 (24 Indexing Positions)
Main Spindle30 HP
Sub Spindle15 HP
Machine Weight14,500 lbs.

Equipped With:

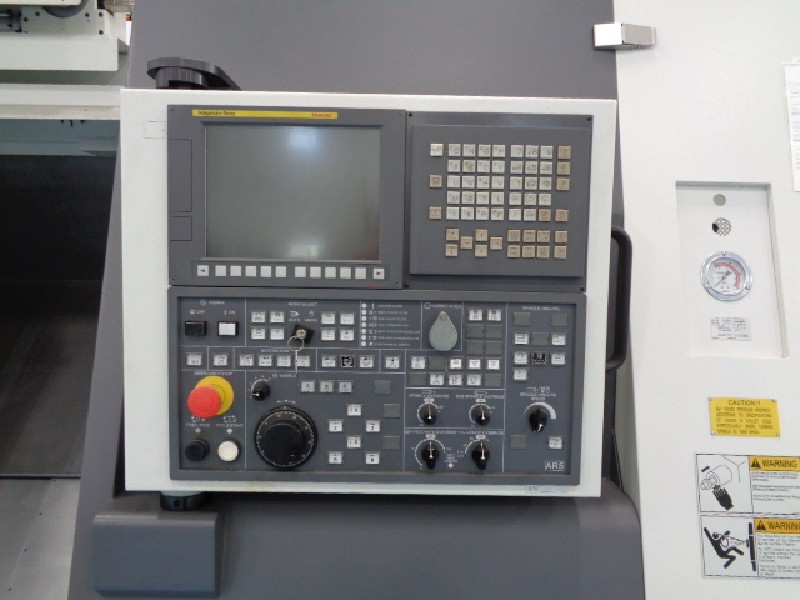

Fanuc OITD CNC Control
Servo Auto Door

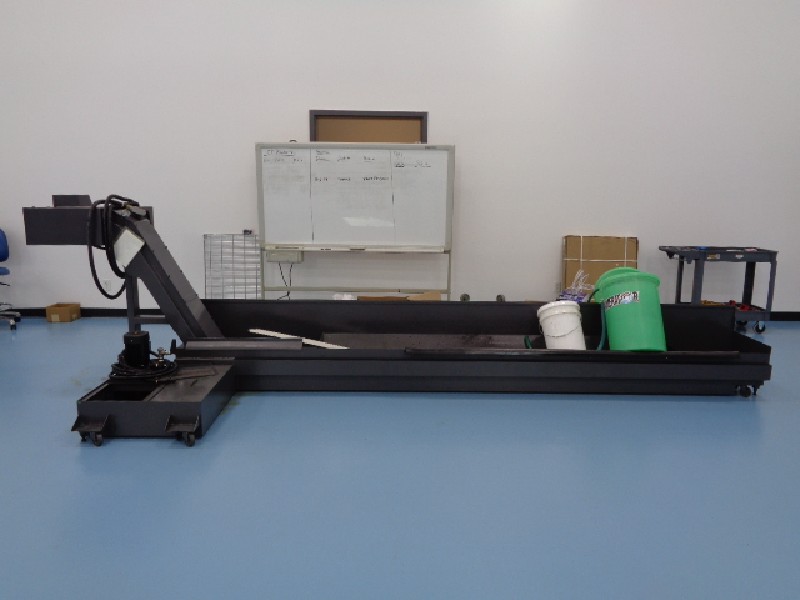

Chip Conveyor
Data Server
Robot Interface
Swing Auto Presetter
(8) Extra M Codes
High Pressure Coolant
Sub Spindle Chuck (Needs Main)
Barfeed Interface
Linear Scale (X) Axis
(5) Place Decimal Display
C3 Type Ballscrew (X) Axis
(X) Axis High Accuracy Pulse Encoder
All Available Manuals
