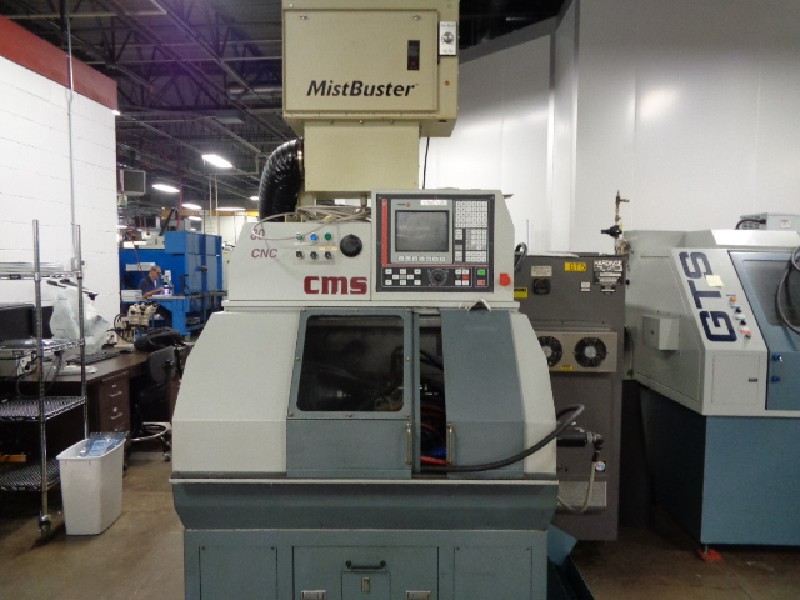

Upgrade Technologies GT 27

Stock Number: 1246

Catalog Specifications *Closed loop 2 axis servo drive package (20 amp. peak 10 amp continuous) *120 ounce/inch liquid sealed axis motors, & 1000 line encoder & tachometer *Built in manual pulse generator *High performance programmable 4,500 RPM precision spindle *Gripping capacity 1900 Lbs. pull force. Collet closer stroke 5/16" *M function controlled high performance pneumatic collet closure(mist lubricated & bar feed ready) *Threading system includes 1024 line spindle encoder *M function controlled high volume, high pressure 15 gallon coolant system *Use of water- or oil base coolants *Compressed air requirements clean & dry 80 PSIG @ 35 CFM

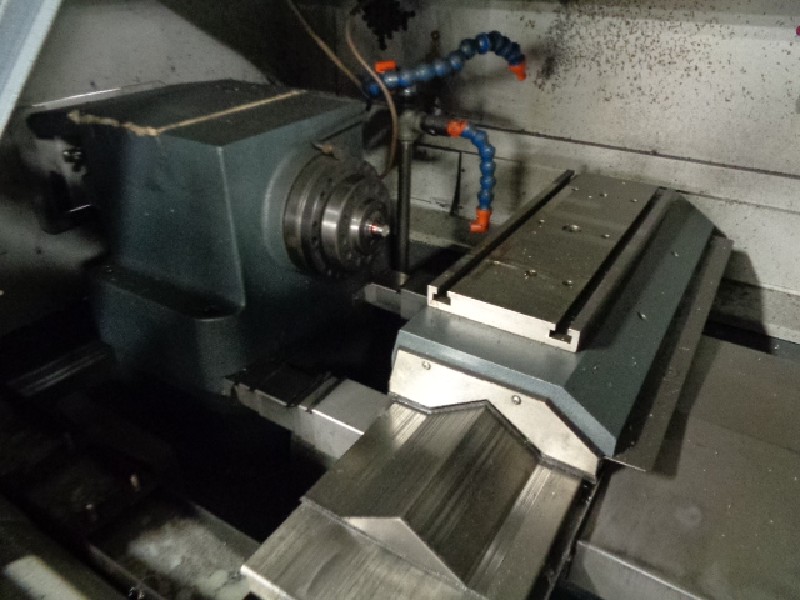

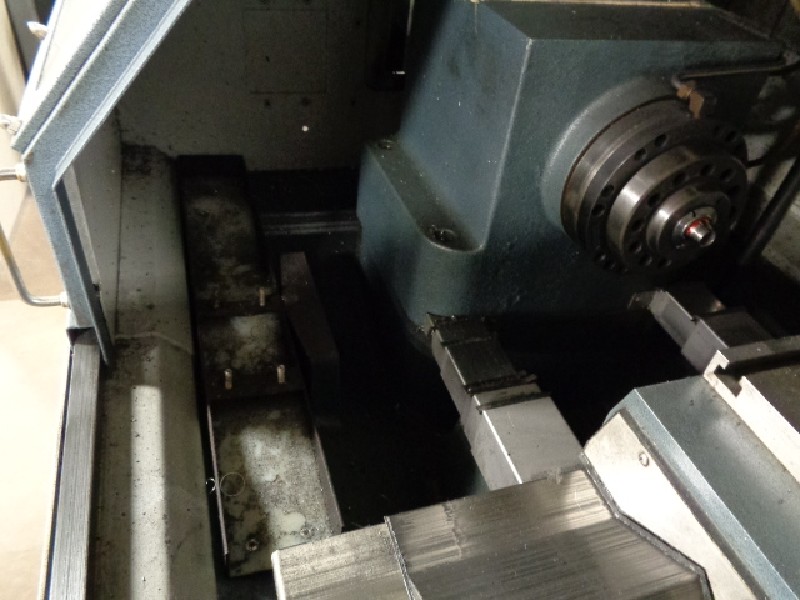

Click to view larger photo

SpecificationDescription
(X) Axis Travels11.75"
(Z) Axis Travels7.5"
Spindle Motor5 HP
Spindle Bore1.275"
Spindle Taper5C
Spindle Speeds0 - 4,500 RPM
Max Bar Size1 1/16"
Standard Hardinge Tool Holders1/2"
Axis Thrust600 lbs.
Feed Rate200 IPM
Rapid Traverse600 IPM
Weight2,800 lbs.
Floor Space48" x 36" x 70"

Equipped With:
Fagor 8050 CNC Control
Mist Buster Air Filter
110V / 1 ph / 5 amps
230V / 3 ph / 15 amps
All Available Manuals
