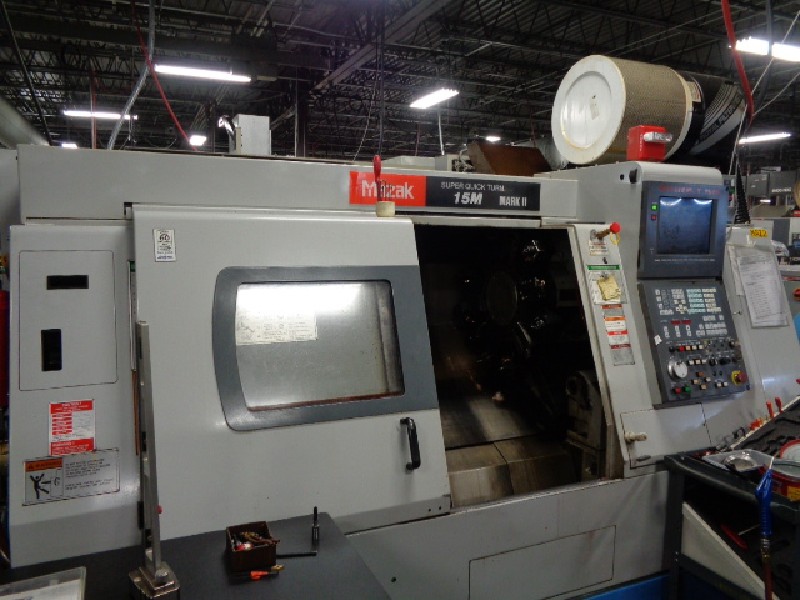

Mazak SQT-15M CNC Turning Center
Mazak SQT 15M
Age: 1997
Stock Number: 1248
Catalog Specifications
Click to view larger photo
Specification Description
Max Swing Over Bed 20.9"
Max Work Piece Diameter 11.75"
Max Turning Length 20.78"
X Axis Travel 7.12"
Z Axis Travel 22.75"
Spindle Nose A2-6
Spindle Bore 2.4"
Spindle Speeds (2 Speed Geared) 35 - 4,500 RPM
Main Motor 25 HP

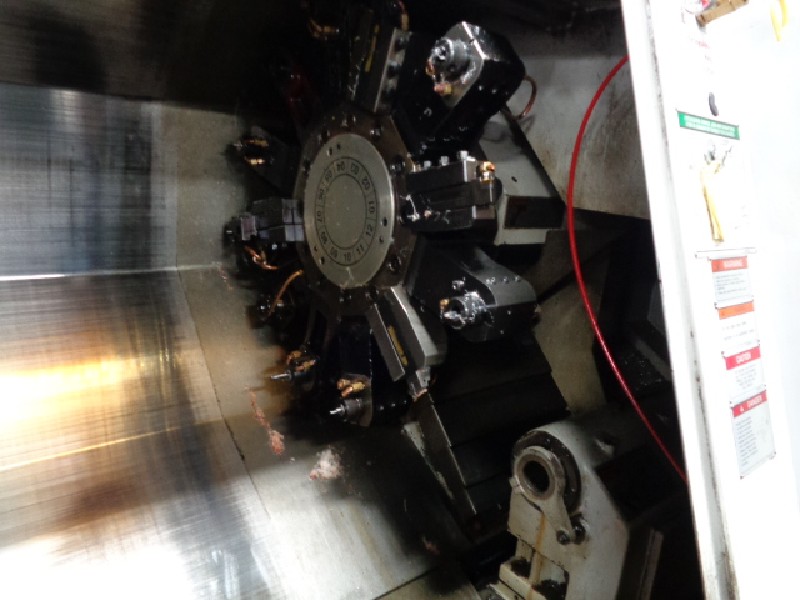

Turret Capacity 12 Position
Machine Dimensions 121.22" x 63.39" x 81"
Machine Weight 10,500 Lbs.
Equipped With:

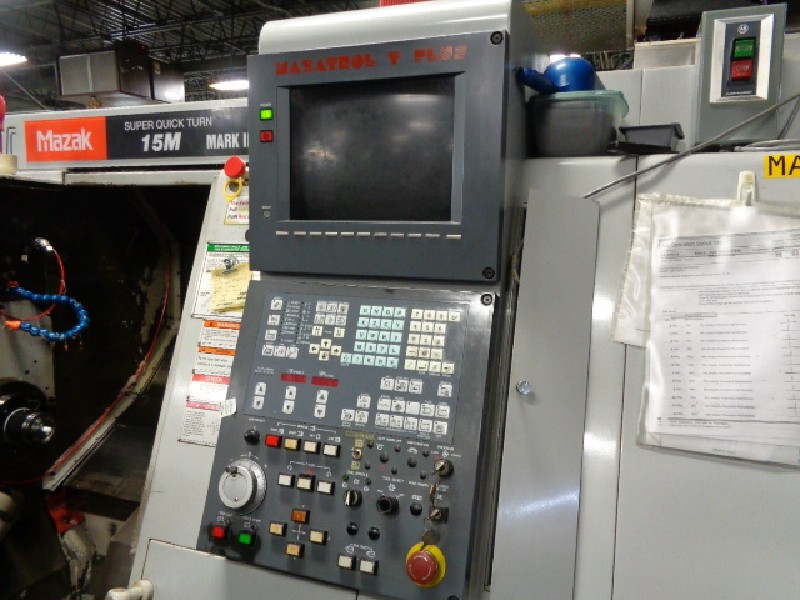

Mazatrol T-Plus CNC Control

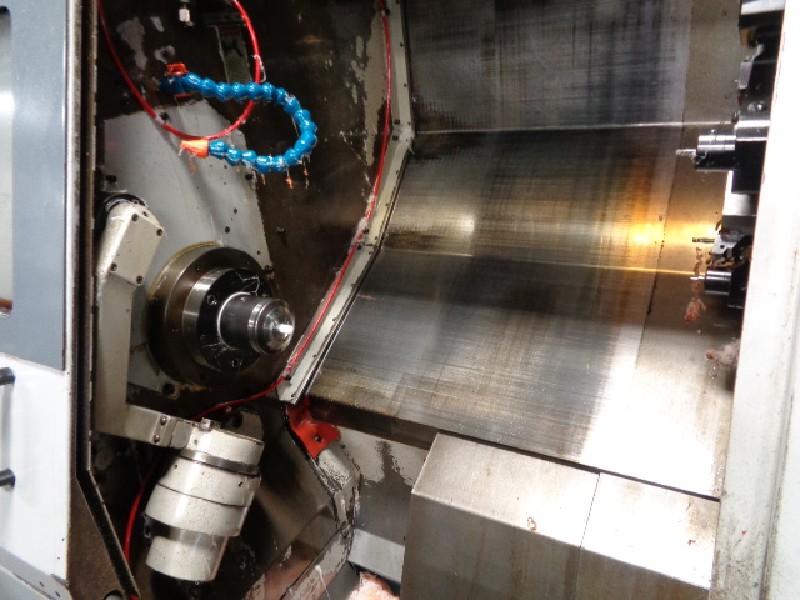

Tailstock
Chip Conveyor
Collet Chuck

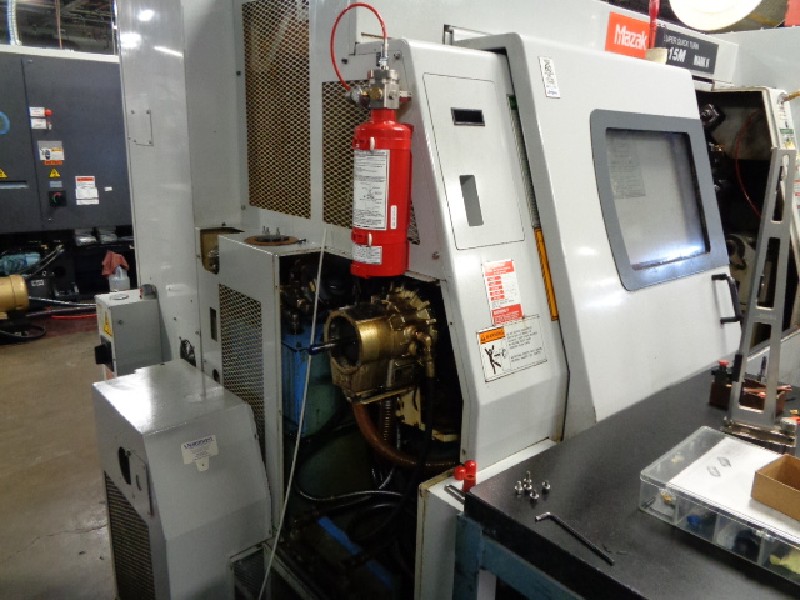

Fire Suppression System
Royal Air Filter
Tool Presetter
Coolant System
RS232
All Available Manuals
Tooling Included: (1) Horizontal Live Tool, (1) Static Turning Tool, (1) Boring Tool Holder, (1) Tapping head/Horizontal Milling holder
