Catalog Specifications
No Mist Filter
No Collet Chuck
Click to view larger photo
Specification
Description
Max Swing Over Bed
23"
Max Work Piece Diameter
10.3"
Max Turning Length
20"
X Axis Travel
8.45"
Z Axis Travel
20"
Spindle Nose
A2-6
Spindle Bore
3.0"
Bar Capacity
2.0"
Spindle Speed
4,000 RPM

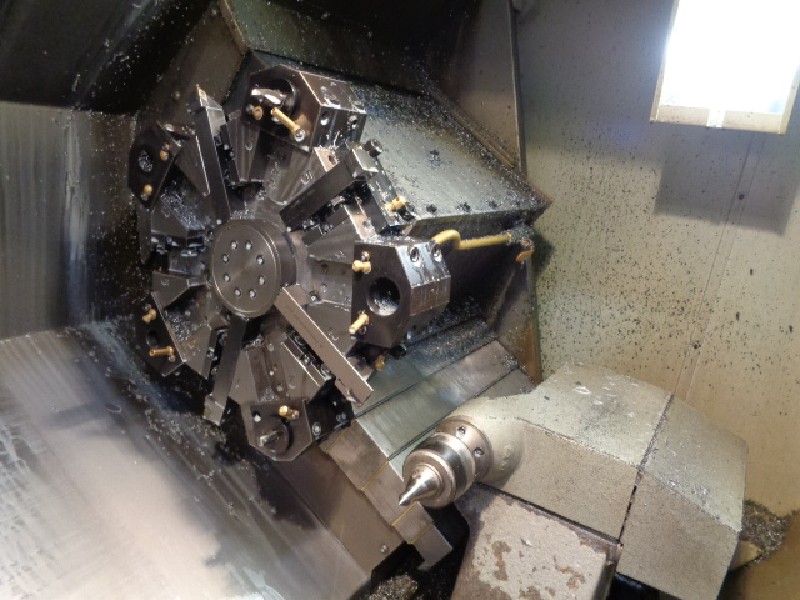

Turret Capacity
10 Position
Machine Dimensions
81" x 78" x 127"
Machine Weight
9,000 Lbs.
Equipped With:

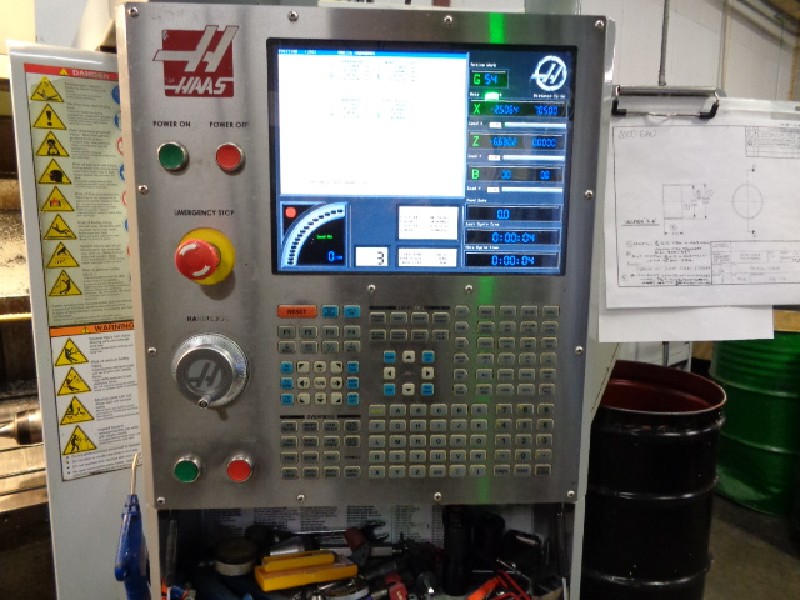

Haas CNC Control
Programmable Tailstock
Chip Conveyor
8" (3) Jaw Chuck
Tool Presetter

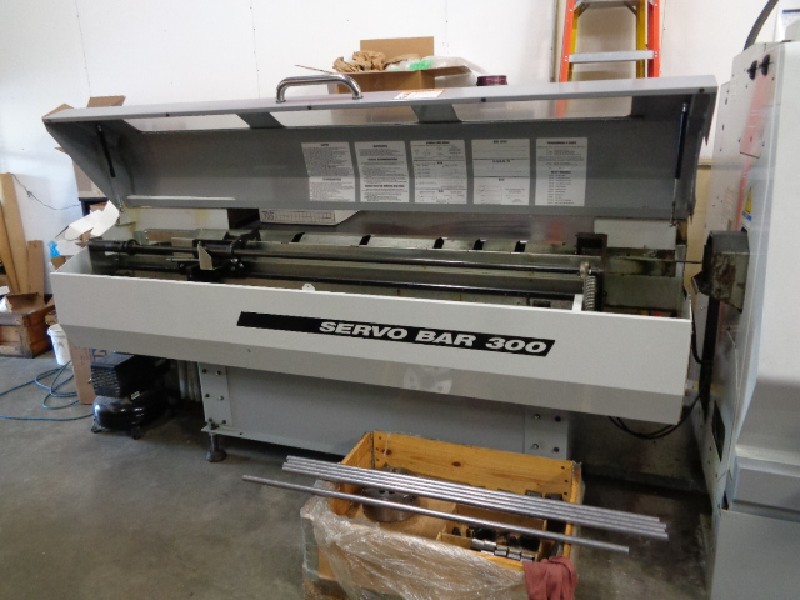

Haas Servo Bar 300 Barfeed
(2) Bar Feed Push Rods
(9) Spindle liners
Parts Catcher
USB Reader

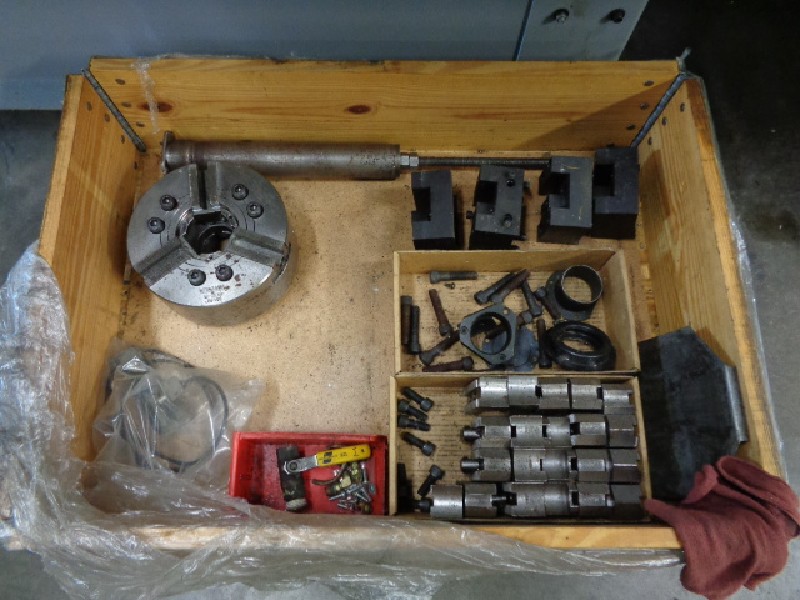

All Available Manuals and Misc. Tooling
