| Specification | Description |
|---|---|
| Max Swing Over Bed | 23.54" |
| Max Swing Over Carriage | 10.55" |
| Max Tailstock Position | 23.5" |
| Max Turning Length | 20.87" |
| X Axis Travel | 7" |
| Z Axis Travel | 20.87" |
| Spindle Bore | 3" |
| Spindle Speed | 24 - 3,600 RPM |
| Spindle Motor | 30 HP |
| Spindle Nose | A2-6 |

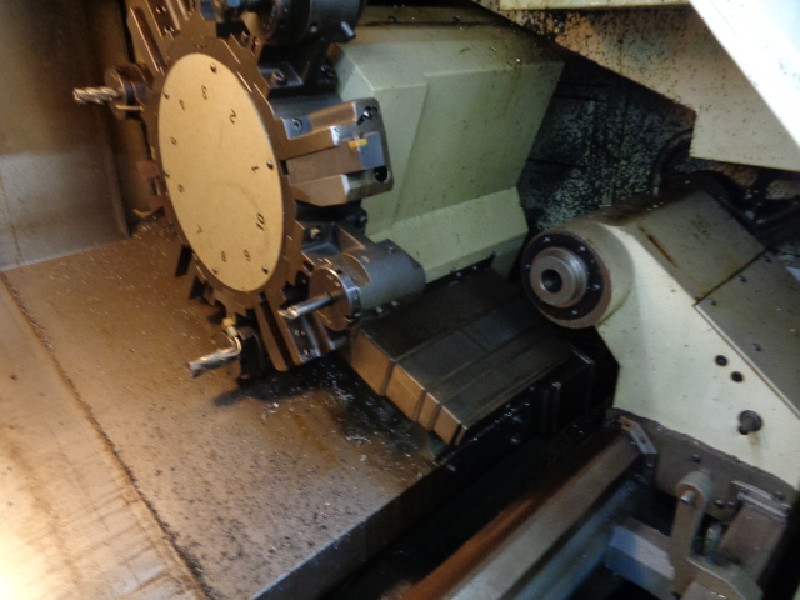

| Turret Capacity | 10 Position |
| Machine Dimensions w/Chip | 80" x 174" x 70 |
| Machine Weight | 10,300 Lbs. |
| Wiring | 220v / 3 Ph / 60 Hz |
