| Specification | Description |
|---|---|
| Max Swing | 20.5" |
| Max Turning Diameter | 15" |
| Max Turning Length | 32.5" |
| X Axis Travel | 9.4" |
| Z Axis Travel | 32.5" |
| Spindle Motor | 30 HP |
| Bar Capacity | 3" |
| Spindle Bore | 3.5" |
| Spindle Speed | 3,400 RPM |
| Spindle Nose | A2-6 |

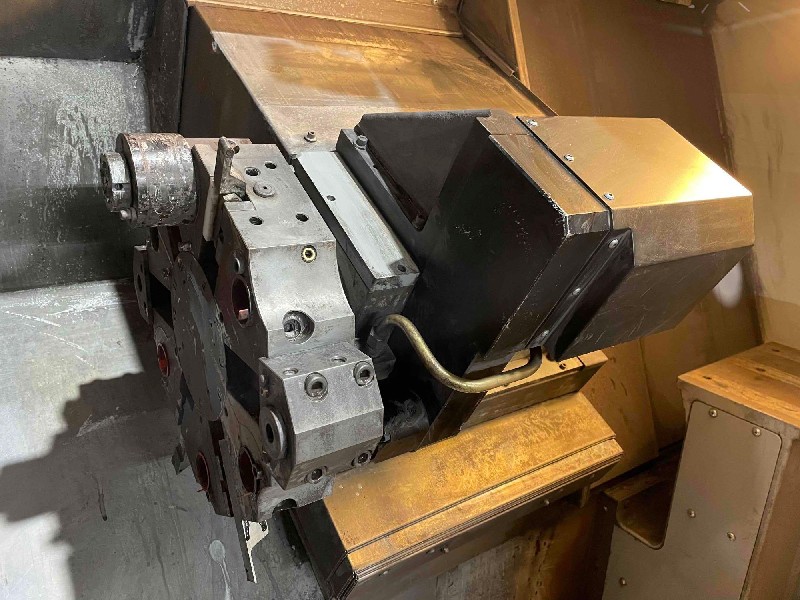

| Turret Capacity | 12 Position |
| Rapid Rate (X & Z) | 945 IPM |
| Dimensions | 171" x 90" x 98" |
| Weight | 14,300 Lbs |
