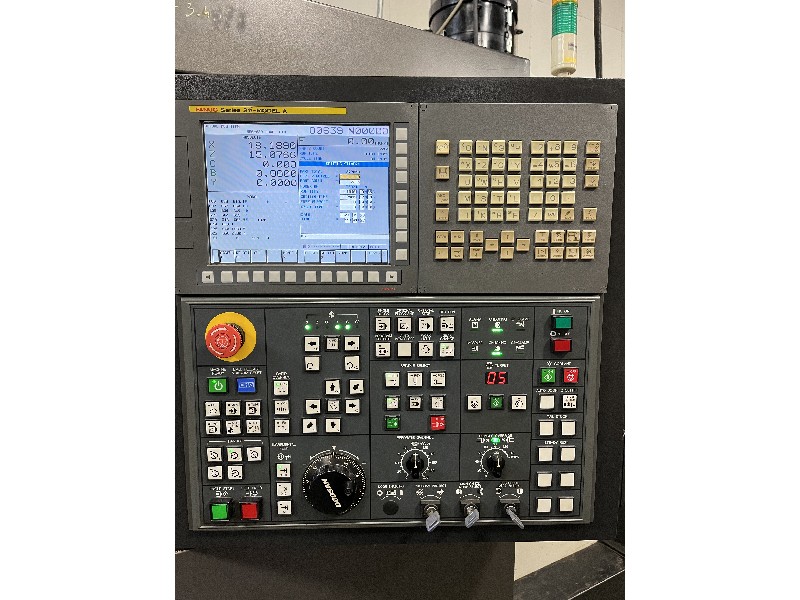

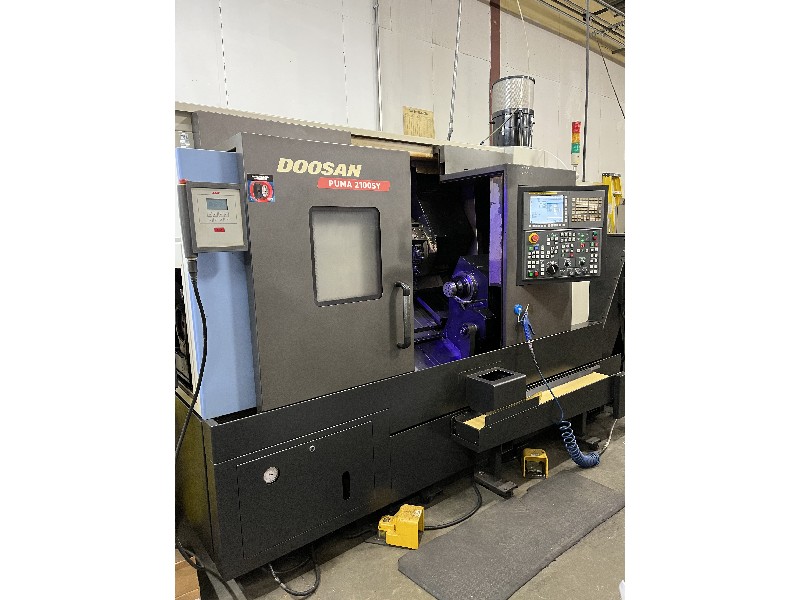

| Specification | Description |
|---|---|
| Max Swing Over Bed | 30.7" |
| Swing Over Front Door | 26.8" |
| Max Swing Over Carriage | 24.8" |

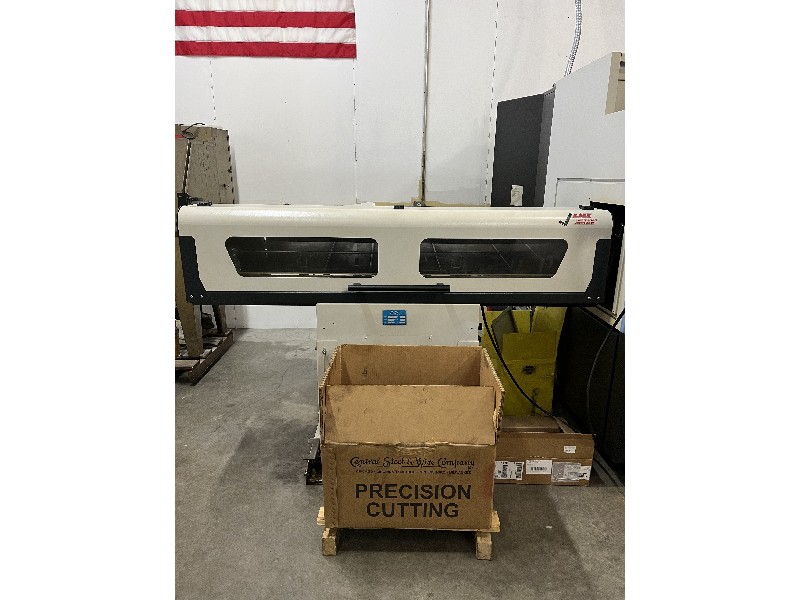

| Max Bar Capacity | 2.6" |
| Max Work Piece Diameter | 15.98" (main) |
| Max Turning Length | 20.47" |
| Distance between Main & Sub | 33.46" |
| MAIN SPINDLE: | |
| Spindle Nose | ASA-A2-6 |
| Draw Tube ID | 2.68" |
| Spindle Bore Diameter | 2.99" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 30 HP |
| MAIN SPINDLE C-AXIS: | |
| Minimum programmable angle (degrees) | 0.001 |
| Rapid traverse rate (RPM) | 400 |
| C-axis contouring torque | 70 Ft/Lb |
| C-axis braking torque | 663 Ft/Lb |
| C-axis repeatability | +/- 0.006 deg. |
| C-axis positioning accuracy | 0.0167 deg. |
| BED, SADDLE, & CROSS SLIDE: | |
| X axis travel | 10.2" |
| Z axis travel | 23.2" |
| Angle of slant bed | 30 Degrees |
| X & Z axis rapid traverse rate | 1,181 IPM |

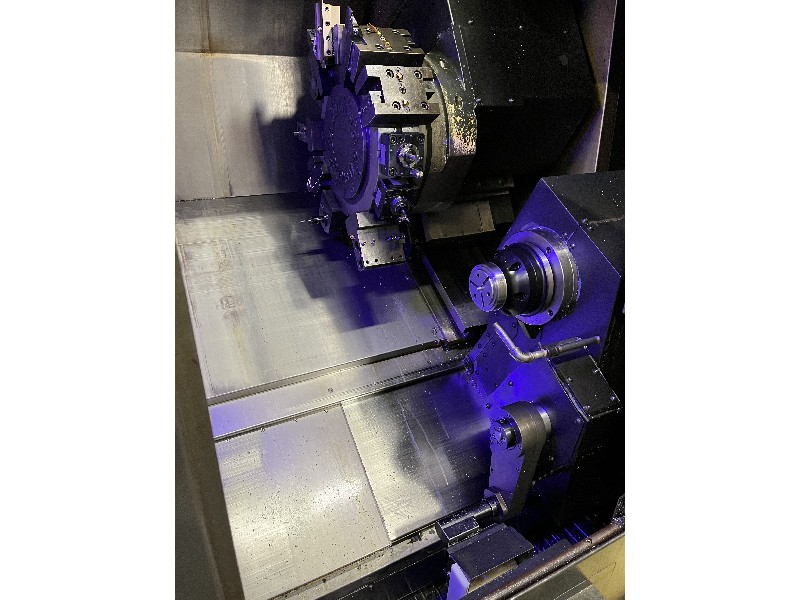

| TURRET: | |
| Number of tools | 12 |
| Number of index positions | 24 |
| Tool holder type | BMT 55P |
| Turning tool shank size | 1" |
| Boring bar diameter, main spindle | 1.5" |
| Boring bar diameter, sub spindle | 1" |
| Tool selection | Bi-directional |
| ROTATING TOOLS: | |
| Rotating tool RPM | 50 - 5,000 RPM |
| Rotating tool spindle motor | 7.5 HP |
| Rotating tool collet type | ER25 |
| Milling collet capacity | 1/8" to 5/8" |
| Max. tool length facing sub-spindle | 3.94" |
| Max. X-axis tool length with Y-axis | 3.8" |
| Y-AXIS: | |
| Y-axis travel | 4.13" (±2.065") |
| Y-axis rapid traverse rate | 394 IMP |
| Y-axis repeatability | 0.00012" |

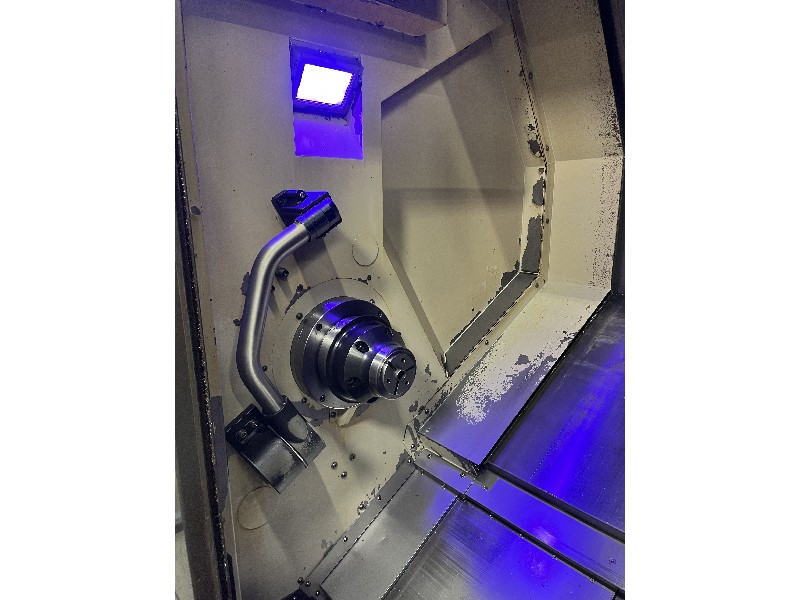

| SUB-SPINDLES: | |
| Sub Spindle Speed | 6,000 RPM |
| B axis travel (sub-spindle) | 23.2" |
| Sub-spindle guideway span | 13.2" |
| Spindle motor | 20 HP |
| Spindle nose | A2#5 |
| Spindle Bore | 2.44" |
| Draw tube ID | 1.97" |
| Rapid traverse rate | 1,181 IMP |
| Minimum programmable angle | 0.001 degree (full C axis) |
