| Specification | Description |
|---|---|
| Max Swing Over Bed | 23" |
| Max Work Piece Diameter | 10.3" |
| Max Turning Length | 20" |
| X Axis Travel | 8.45" |
| Z Axis Travel | 20" |
| Max Bar Diameter | 2" |
| Spindle Motor | 20 HP |
| Spindle Speed | 4,000 RPM |
| Spindle Nose | A2-6 |

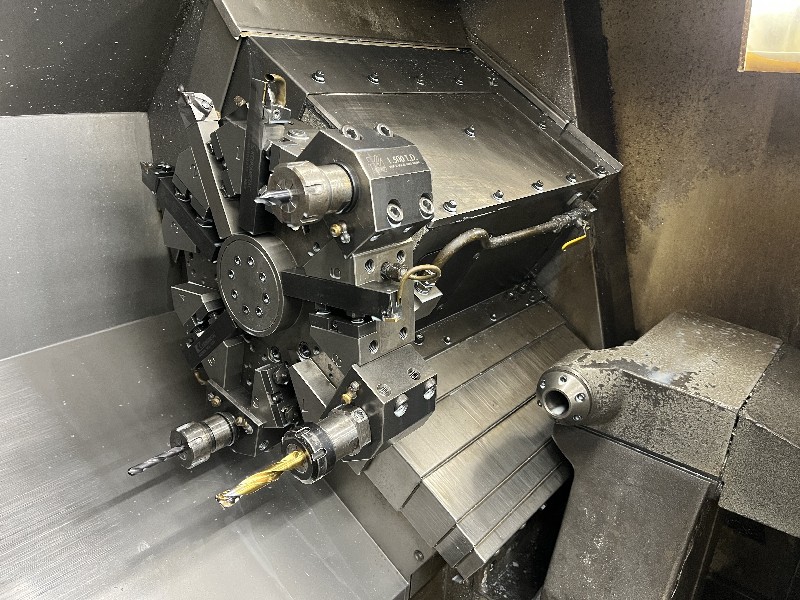

| Turret Capacity | 8 Position |
| Rapid Traverse (X,Y) | 945 IPM |
| Dimensions | 127" x 80" x 92" |
| Weight | 9,000 Lbs. |
Advantage Products Inc.
21090 Horseshoe Trail
Corcoran, MN 55340
(763) 439-9347
sales@advantagecnc.com
