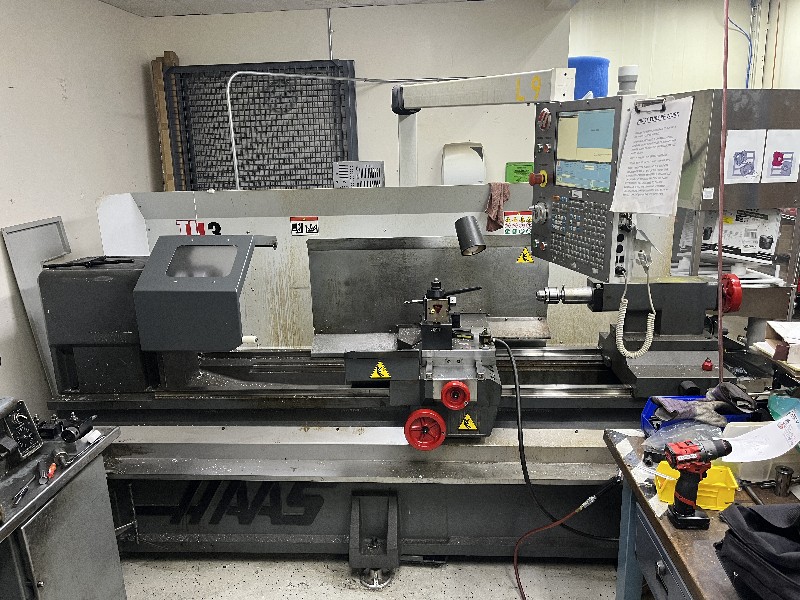

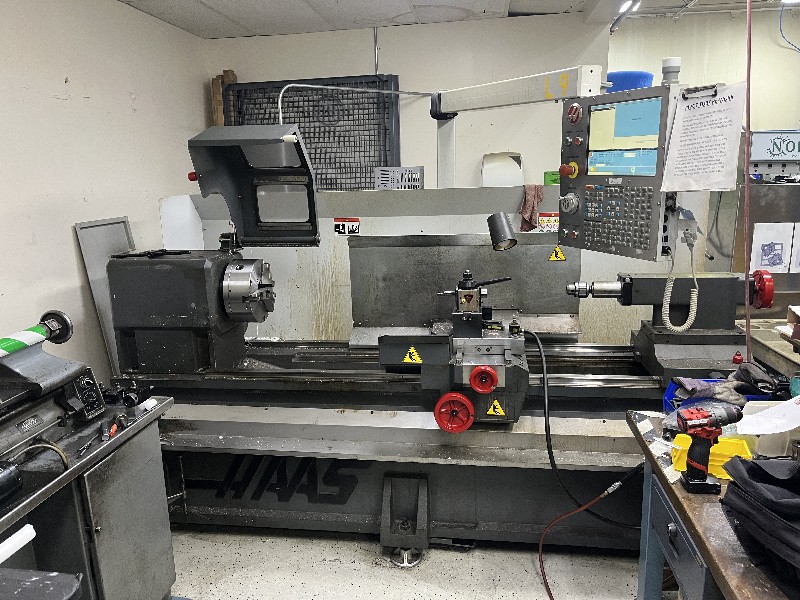

2016 Haas TL-3 Flatbed CNC Turning Center

2016 Haas TL-3 Flatbed CNC Turning Center

Haas TL3

Age: 2016

Stock Number: 1640

Catalog Specifications, Rigging not included As of 3/25/26 - Cycle Time: 888:26:55 - Feed Time: 555:21:56


Click to view larger photo

SpecificationDescription
Max Swing Over Bed20"
Max Work Piece Diameter20"
Swing Over Cross Slide13"
Center Length60"
X Axis Travel12"
Z Axis Travel60"
Spindle Bore Diameter3.5"
Spindle Motor18 HP
Spindle Speed1,200 RPM
Spindle NoseA2-6
Approx Dimensions121" x 77" x 82"
Weight9,600 Lbs.
Wired440v/3ph

Equipped With:

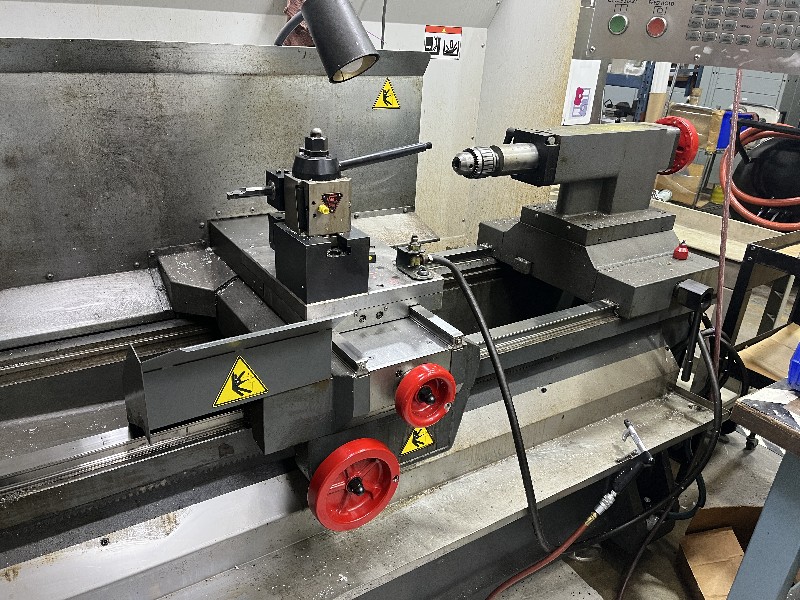

Tool Post
Spindle Chuck Guard
Rear Chip Enclosure
Tailstock

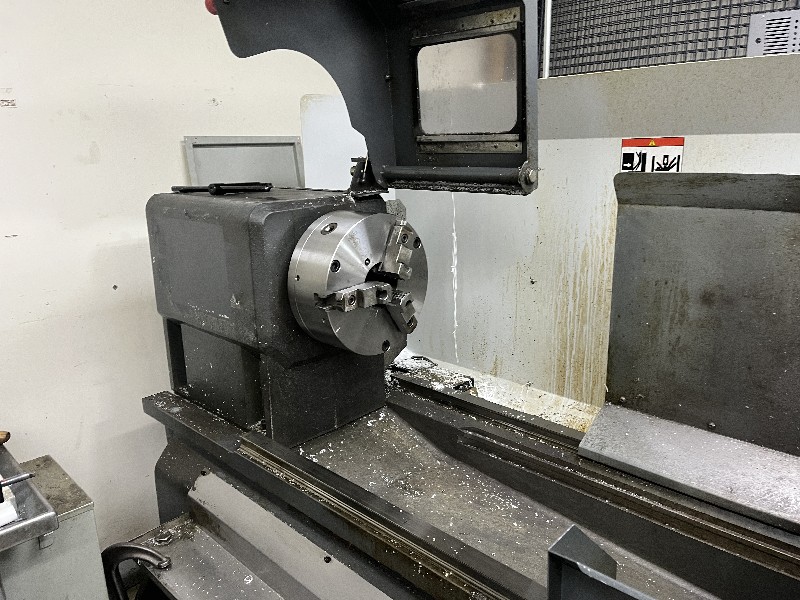

12" 3 Jaw Chuck
USB
All Available Manuals
