Specification | Description |
---|---|
Length of Arm | 7 Feet |
Diameter of Column | 15" |
Vertical Travel of Arm | 35.25" |
Minimum Distance, Spindle to Column Face | 14" |
Maximum Distance Spindle to Base | 18" - 67" |
Spindle Taper | #5 Morse |
Spindle Travel | 18" |
Spindle Speeds | 40 - 1,600 RPM |
Spindle Feeds (9) | 0.006 to .125 IPR |
Main Motor Drive | 20 HP |

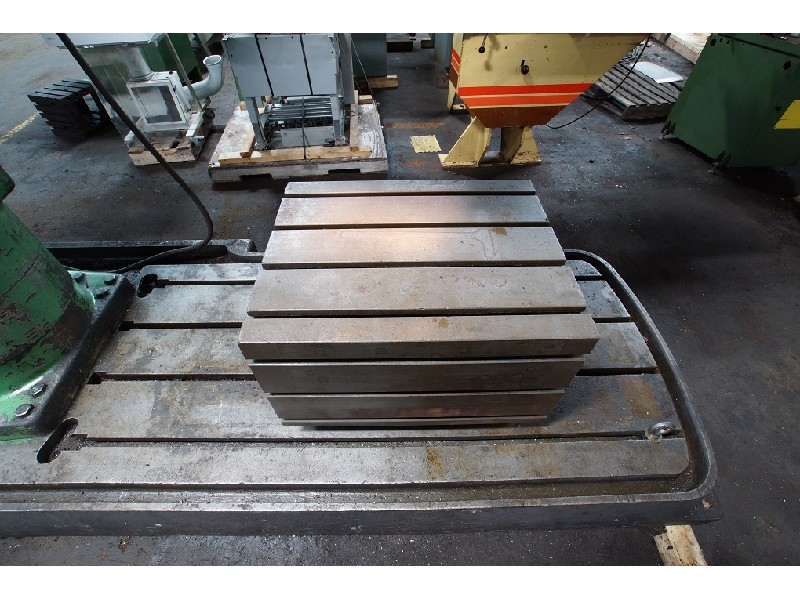

Machine Table Base | 7 Ft X 42" |
Overall Dimensions | 136" x 60" x 110" H |
Weight | 18,000 lbs. |
