| Specification | Description |
|---|---|

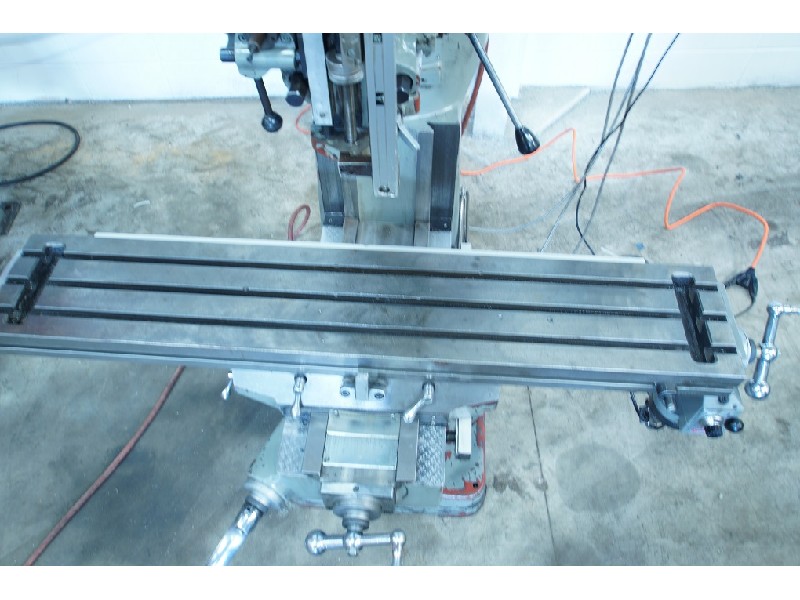

| Table | 9" x 50" |
| Table Travel: X-Axis | 37" |
| Saddle Travel: Y-Axis | 12" |
| Ram Travel | 12" |
| Quill Travel: Z-Axis | 5" |
| Knee Travel | 16" |
| Spindle to Column (min-max) | 6 3/4 - 18-1/2" |
| Spindle Nose to Table | 2 1/8" - 18" |
| Spindle Motor | 3 HP |
| Spindle RPM (Variable Speed) | 60 - 4,500 RPM |
| Taper | R8 |
| Quill Feed (IPR) | 0.0015", 0.003", 0.006" |
| Floor area (W x D) | 7' X 6.5' |
| Net Weight | 2,400 Lbs. |
