Die Sizes:
2 ½"Ø x 6" CLR

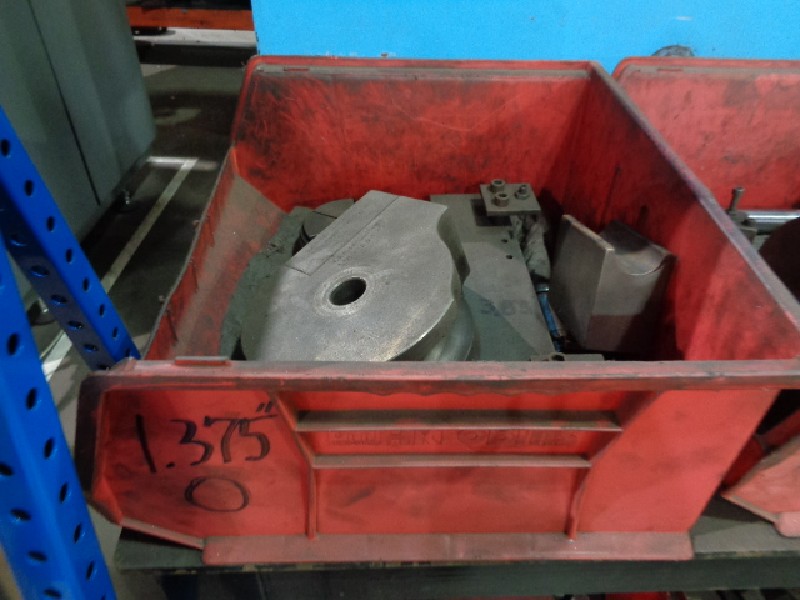

1 3/8"Ø x 3" CLR (2 sets)
1 ¼"Ø x 3" CLR
1"Ø x 3" CLR
Click to view larger photo

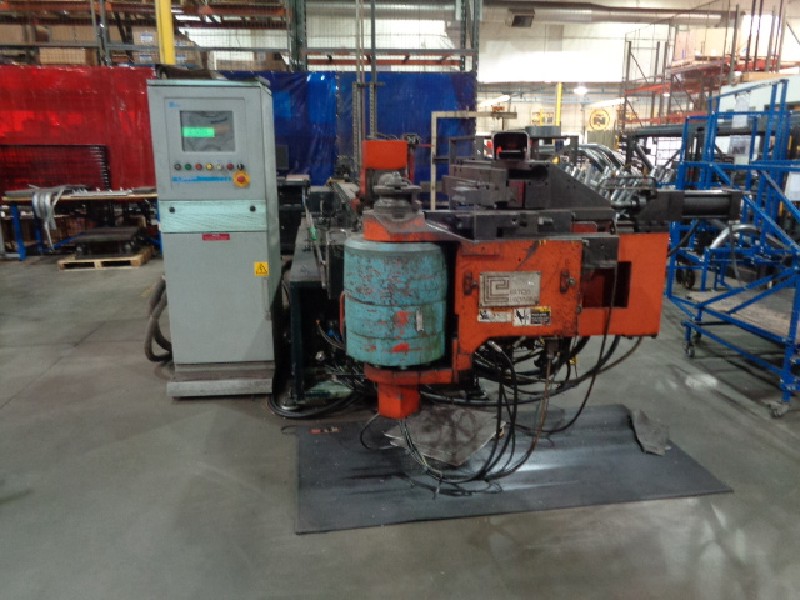

Specification
Description
Maximum Tube Diameter
3" OD
Maximum Bend Radius
180 Degrees
Maximum Bend Center Line Radius
12"
Maximum Tube Length Over Mandrel
144"
Bending Rotation
Right Hand
Equipped With:

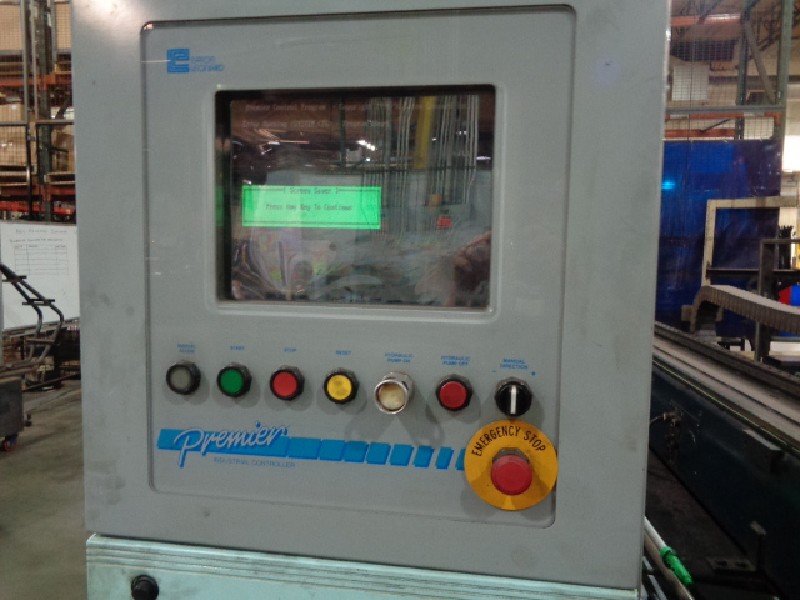

Premier CNC Control
Hydraulic Mandrel Extractor
Hydraulic Pressure Die Assist
Direct Acting Pressure Die Assist
Drop Away Type Clamp Die
Pneumatic Collet Closer

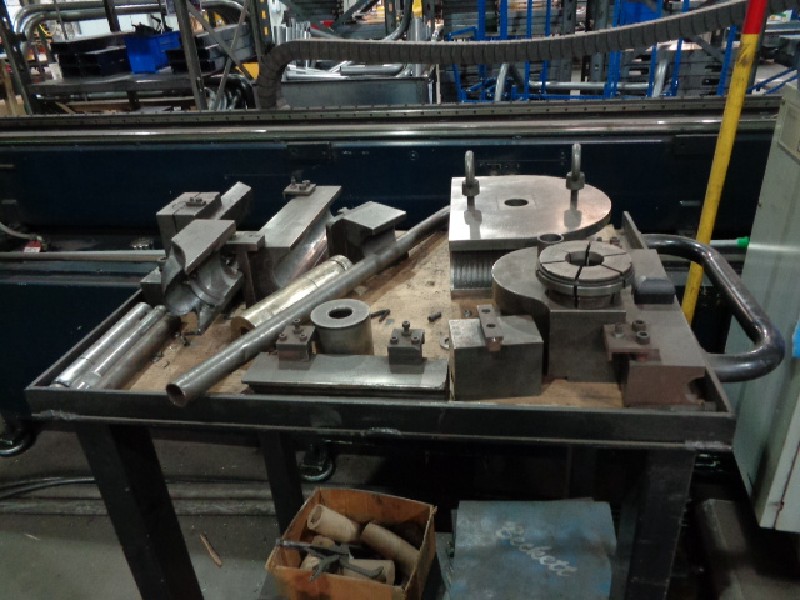

Misc. Dies
All Available Manuals
