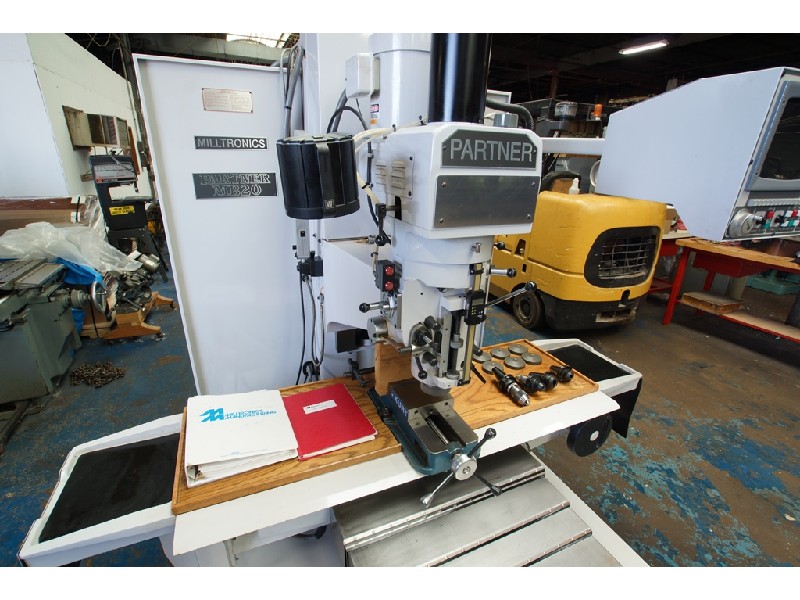

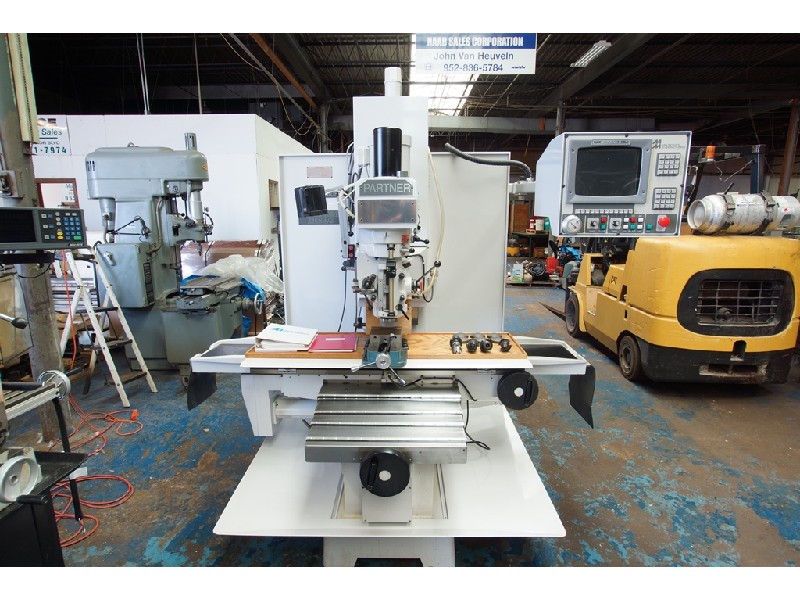

Milltronics Partner MB20-A CNC 3 Axis Milling Center
Milltronics Partner MB20-A
Age: 1997
Stock Number: 1205

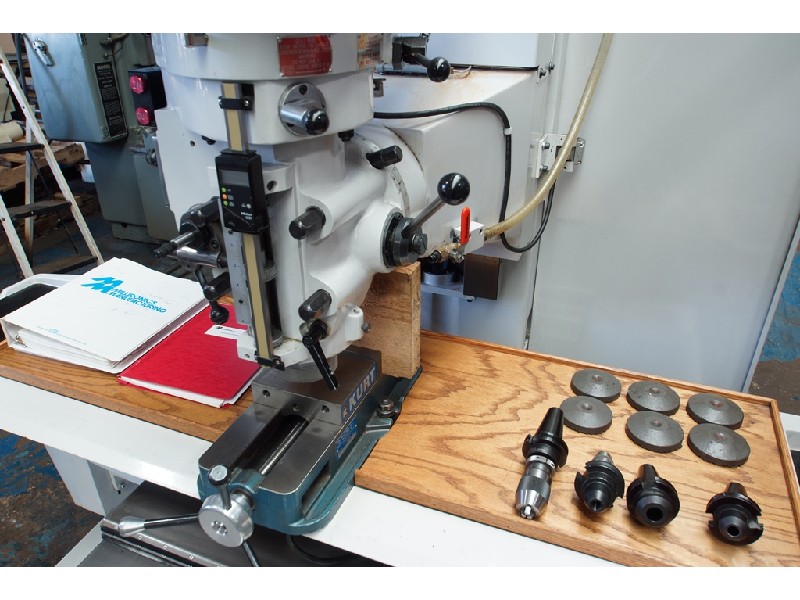

Complete With:
KURT D675 AngLock Vise
4 Cat 40 Tool Holders
1 has Albrecht Chuck
Hand Made Wood Table Covers
Click to view larger photo
Specification
Description

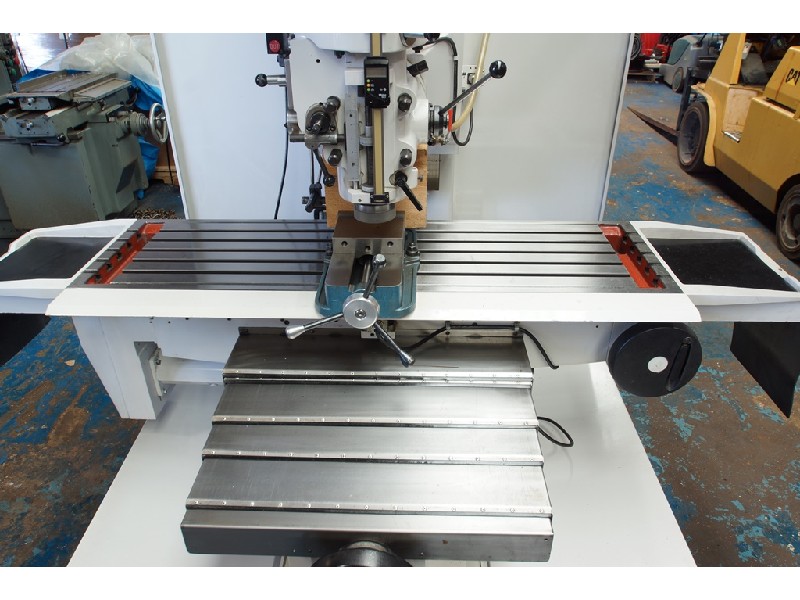

Table Size
54" X 16"
X Travel
40"
Y Travel
20"
Z Travel
24"
Quill Travel
6"
Spindle Speeds
60 - 4,000 RPM
Spindle Taper
CAT #40
Spindle Motor
10 / 7.5 HP
Spindle Nose to Table Top
3.75" - 27.75"
Rapid Traverse Rates (X & Y / Z)
500 / 300 IPM
Quill Diameter
4.125"
Machine Dimensions (L x W)
129" x 78"
Weight
7,000 lbs.
Equipped With:

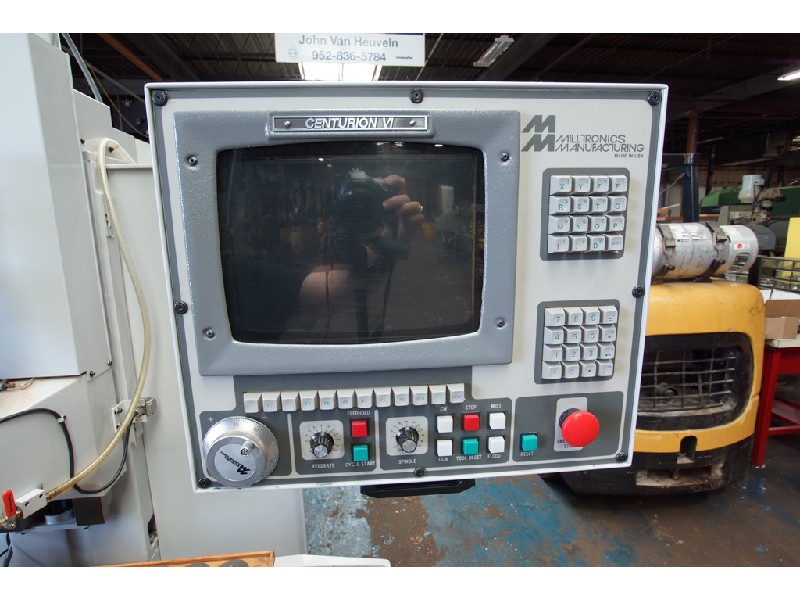

Centurion VI CNC Control
Rigid Tapping
Mitutoyo Z Axis DRO
Cat 40 Spindle
Work Light
Auto Way Lube
Power Draw Bar
Conversational & G-Code Programming
3.5" Floppy Disc Drive
Stainless Steel Y-Axis Way Covers
Heavy Duty Box Way Construction
Coolant Pump
All Available Manuals
