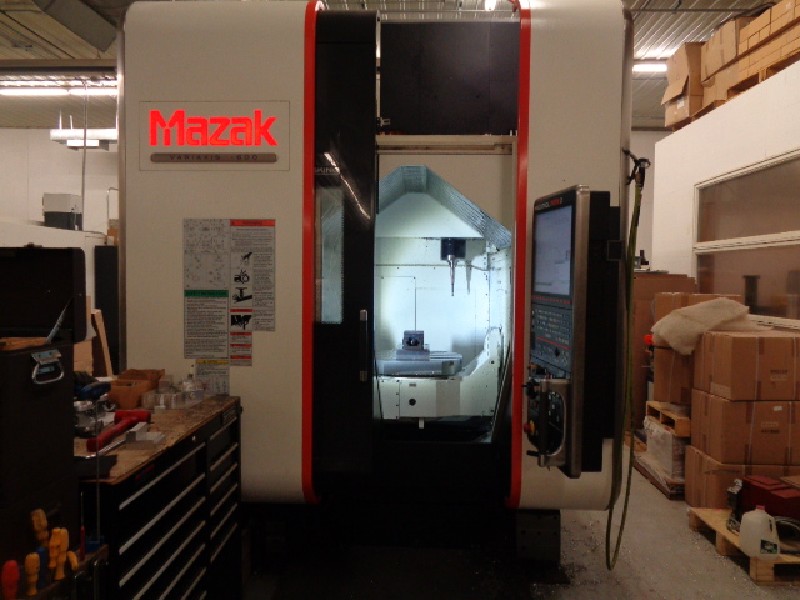

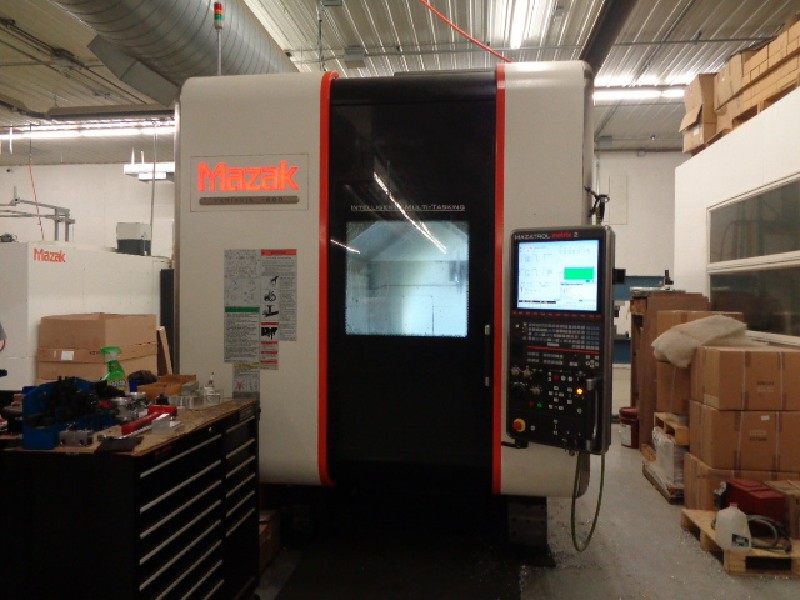

Mazak Variaxis i600 CNC Vertical Turning Center

Mazak Variaxis i600 CNC Vertical Turning Center

Mazak Variaxis i-600

Age: 2013

Stock Number: 1300




Click to view larger photo

SpecificationDescription
Table Size (1 Pallet)23.62" x 19.69"
Weight On Table500 Lbs.
Maximum Workpiece Size27.5" x 17.72"
Spindle Nose To Table2.76" ~ 22.83"
X Travel20"
Y Travel38.5"
Z Travel40"
A Travel-120 ~ +30 Degrees
C Axis Indexing360 Degrees
Spindle Speeds12,000 RPM
Main Spindle Horse Power35 HP
Spindle TaperCAT #40
Tool Capacity40 ATC
Rapid Traverse X, Y, Z2362, 2362, 2204 IPM
Cutting Feed Rate2204 IPM
Machine Weight28,600 Lbs.

Equipped With:

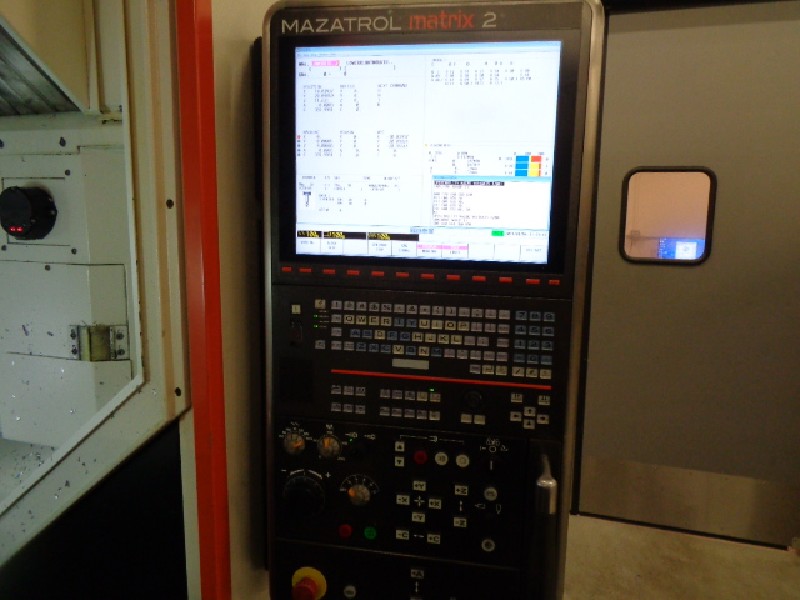

MAZATROL MATRIX 2 CNC CONTROL

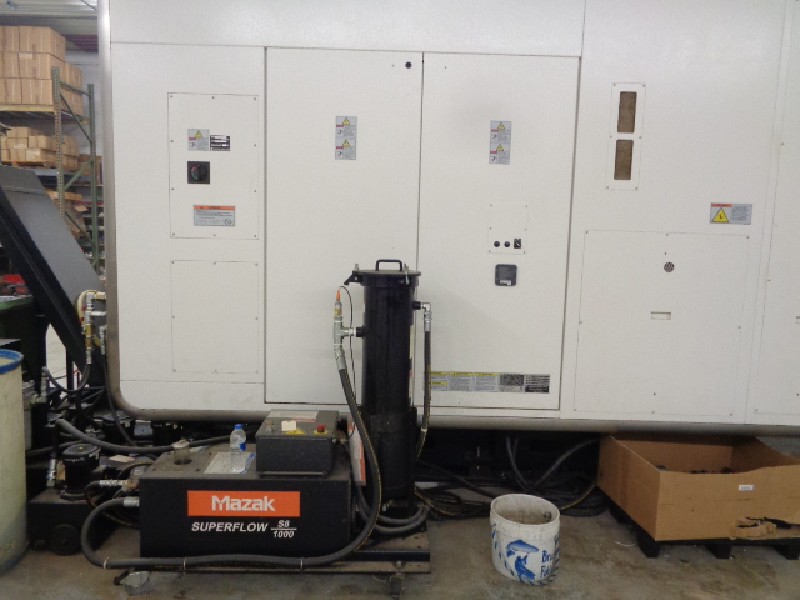

MAZAK SUPERFLOW S8 HIGH PRESSURE COOLANT SYSTEM
EIA, SPIRAL, EIA 3D COMP
RENISHAW RMP600 PROBE
HIGH SMOOTHING CONTROL
ROTATION, GEOMETRIC, AND SCALING
THREAD, INVERSE TIME, COMPARISON STOP
AUTO ATLM
SPLINE
SYNC. MILL TAPPING
ROT-AXIS SHAPE COMP.
VARIABLE 600 SETS
SIMULTANEOUS 5 AXIS
TILTED WORKPLANE
TOOL CENTER POINT CONTROL
5-AXIS SPLINE
EXT-DATA I/O, HIGH SPEED, SHAPE COMP.
DYNAMIC COMP.
POLAR COORDINATE INPUT
G54.1
INCH/MM CONVERT
G00 SLOPE CONSTANT
CYLINDER
EIA HELICAL TAP AND PATTERN CYCLES
5-AXIS TOOL COMP.
PROGRAM MEMORY EXPANSION

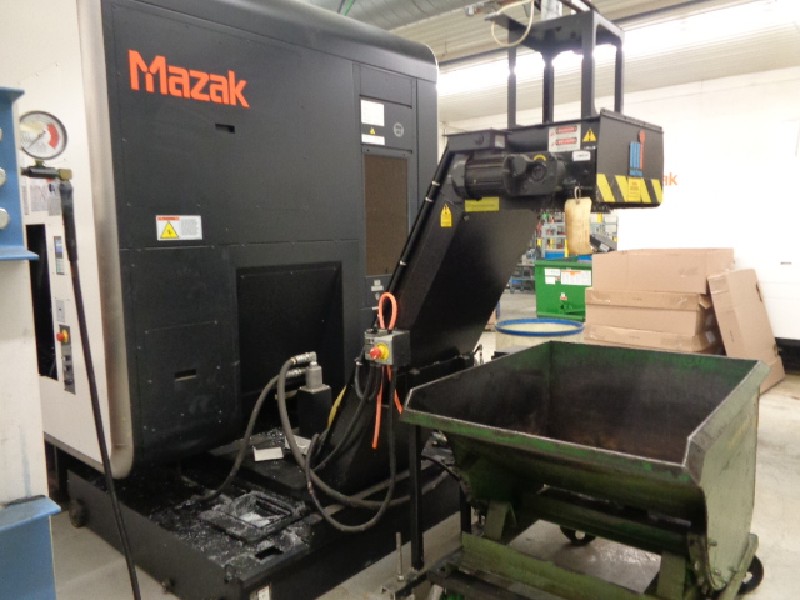

CHIP CONVEYOR
