Catalog Specifications
Machine can be removed after 4/20/21
The hour meter reset with a battery failure (Replaced 6/2/20 with PCB Dual Battery Kit). It's a one shift a day for 5.5 years machine.

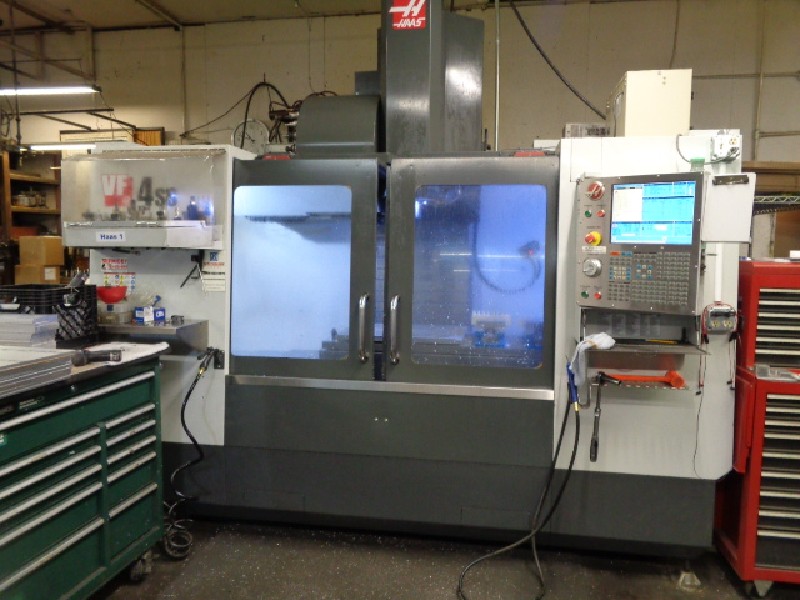

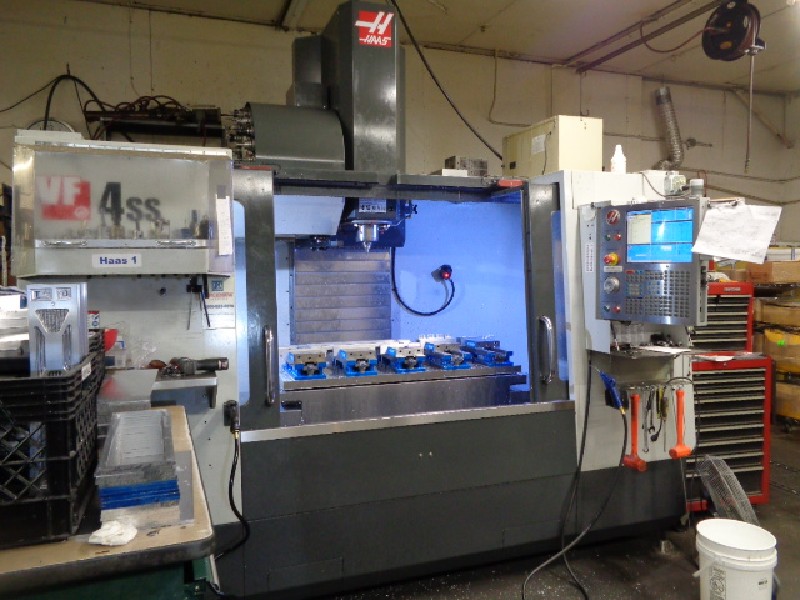

Click to view larger photo
Specification
Description
Table Size (T-Slot)
52" X 18"
X Travel
50"
Y Travel
20"
Z Travel
25"
Spindle Speeds
15,000 RPM
Spindle Taper
CAT #40
Tool Capacity
24 ATC
Spindle Motor
30 HP
Equipped With:
Rigid Tapping
Chip Auger
Thru Spindle Coolant
Coolant System

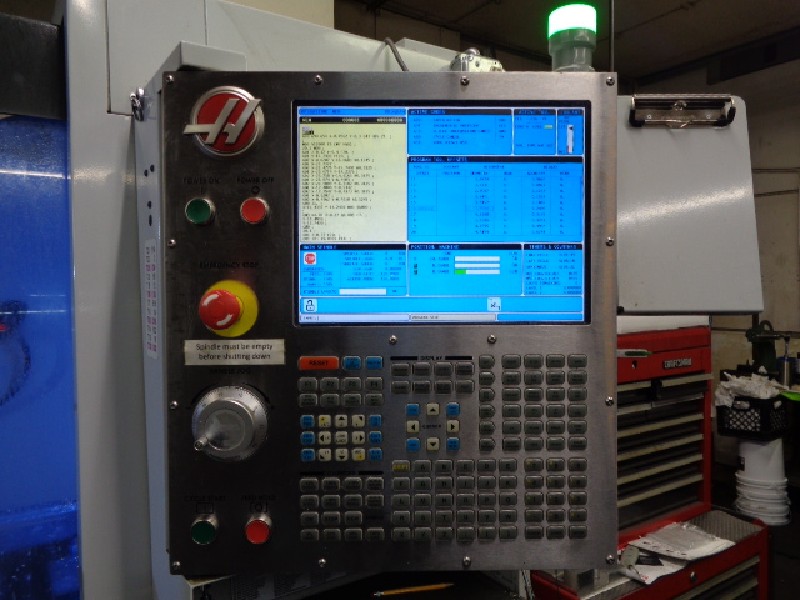

Haas CNC Control

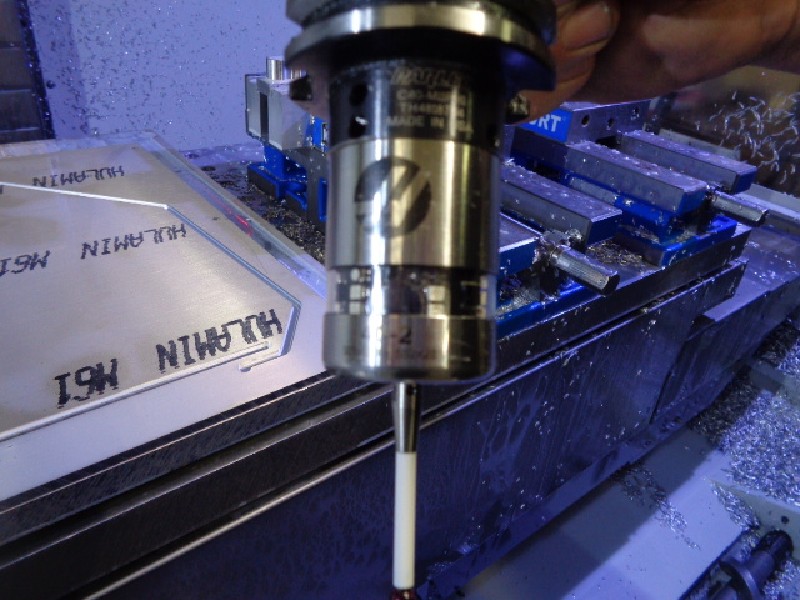

Renishaw Probe System (40-2)
Mist Buster
Table Platen
All Available Manuals
